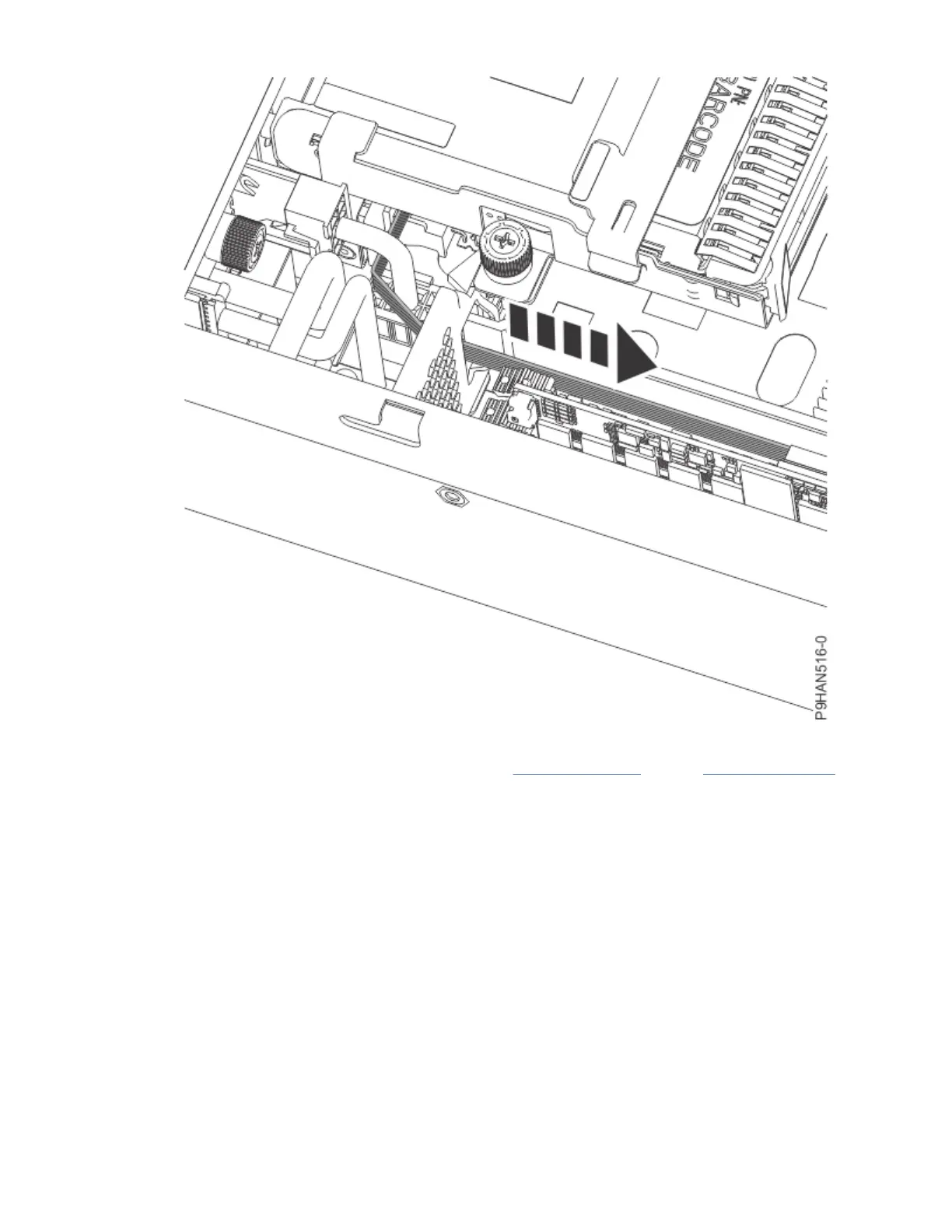

Figure 94. Pulling the BPM to remove cable slack
n) If your system has a second BPM, repeat steps “15.b” on page 86 through “15.m” on page 93 for
the other BPM and BPM cable.
16. Using your labels, replace the internal drives into their trays, if present. Otherwise, continue with the
next step.
a) Unlock the drive handle (B) by pressing the handle release latch (A) in the direction that is shown,
and pulling out the handle toward you.
94
Power Systems: System backplane
