Figure 105. Seating the NVMe M.2 carrier card
20. Replace the RAID adapters, if present. Otherwise, continue with the next step.

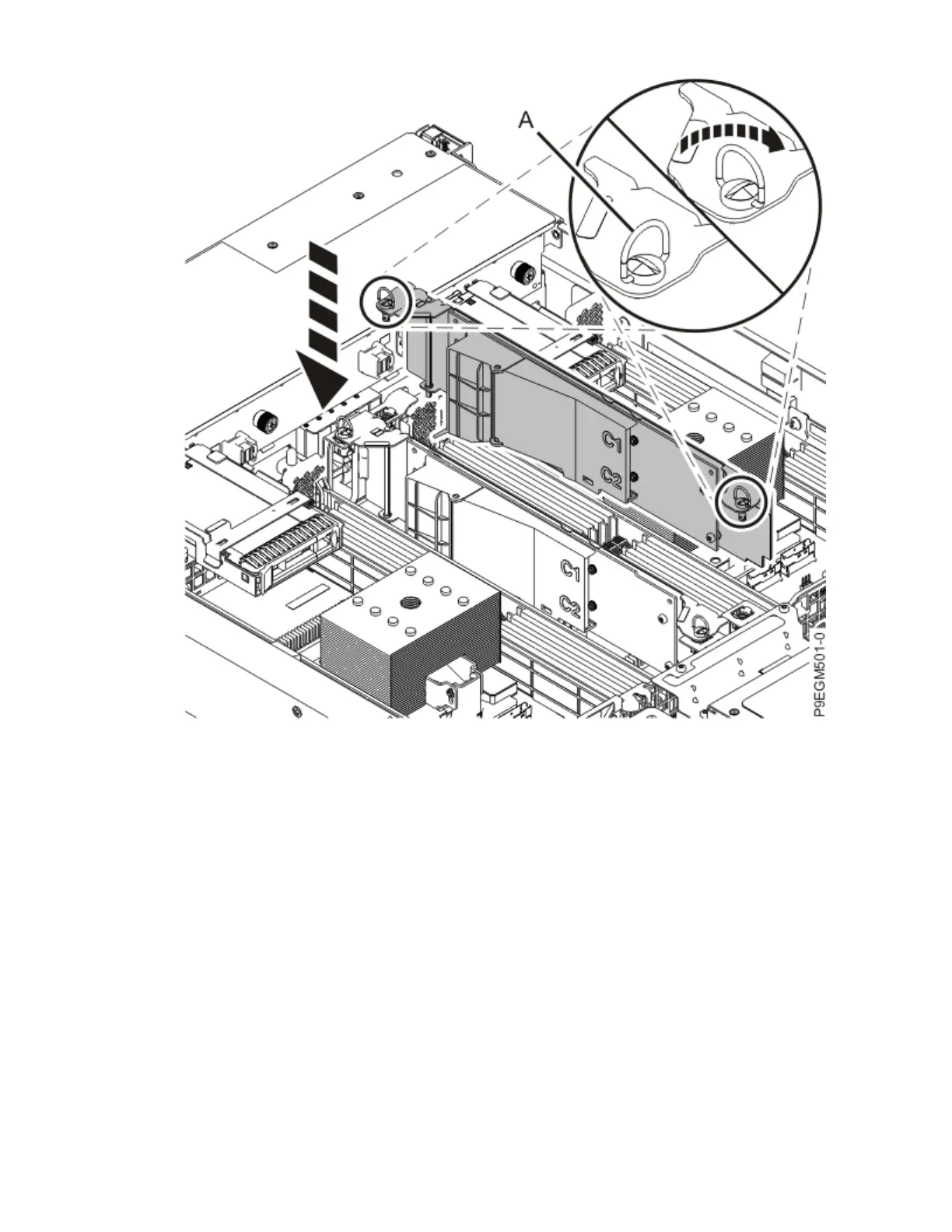

a) Route the front SAS cables into position while you lower the SAS RAID adapter into its slot. Push
the SAS RAID adapter down to seat the adapter. Push in and twist the screws (A) clockwise to
fully seat the adapter. See the following gure.
Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,
or 9223-22S 105
