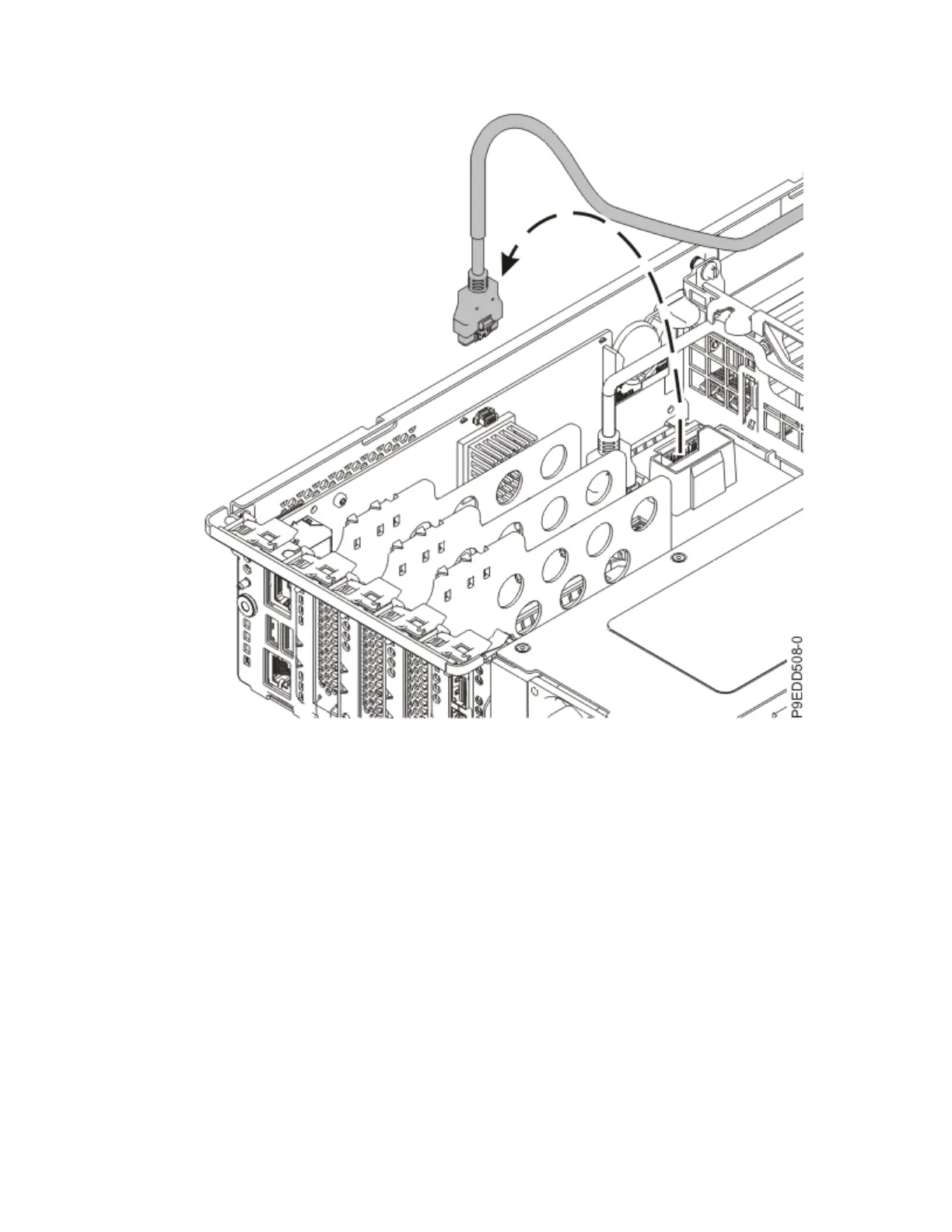

Figure 15. Disconnecting the front USB cable and routing it over the side of the system
6. Remove the vital product data (VPD) card:
a) Grasp the VPD card by the plastic housing as shown in the following gure.
b) Pull the VPD card out of its slot in location P1-C13 on the system backplane. See the following
gure.
18
Power Systems: System backplane
