Figure 16. Removing the VPD card
c) Place the VPD card on an appropriate ESD surface.
7. Remove the service processor card:
a) At the rear of the system, unlatch the PCI adapter retainer (A) for the service processor card. See

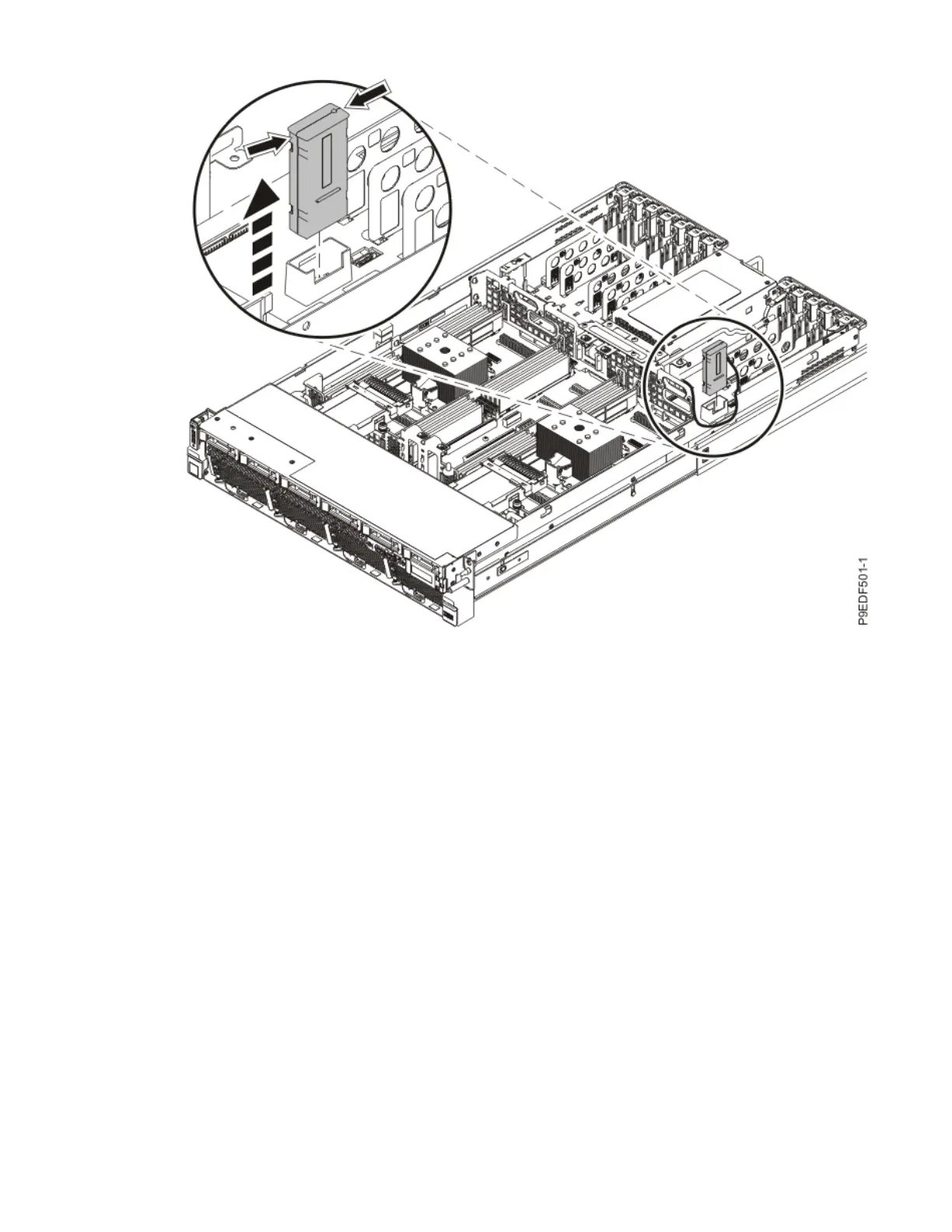

(A) in the following gure.
b) Pull the service processor card straight up from the slot by holding the card bracket (B) and the
tailstock.
c) Place the service processor card on an appropriate ESD surface.
Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,
or 9223-22S 19
