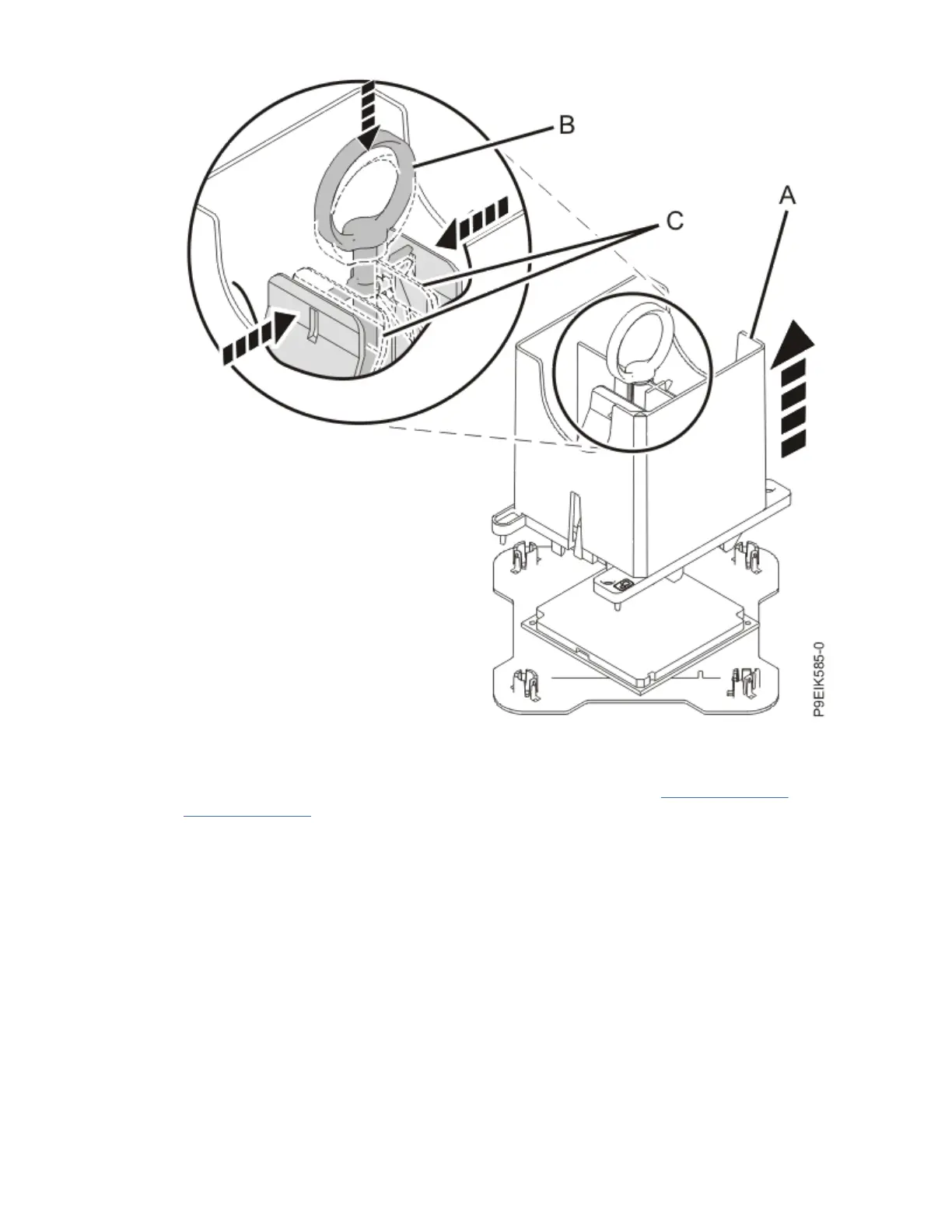

Figure 56. Releasing the system processor module from the tool
h) Place the cover on the system processor module tray.
i) If your system has a second system processor module, repeat steps “25.a” on page 53 through
“25.h” on page 58 to remove the other system processor module.
26. Place the socket dust covers in the system processor module sockets on the system backplane:
a) Lower the socket dust cover over the sockets on the system backplane and ensure that the holes
(B) on the socket dust cover align with the two guide pins (A) on the system backplane. Push
straight down until the latches (D) on the socket dust cover engage with the latches (C) on the
backplane. See the following gure.
58
Power Systems: System backplane
