Notes:
• No cascading allowed for the 5887 storage drawer.
• The 5887 storage drawer is connected to same numbered port on each adapter.
• HD AA cable is required.

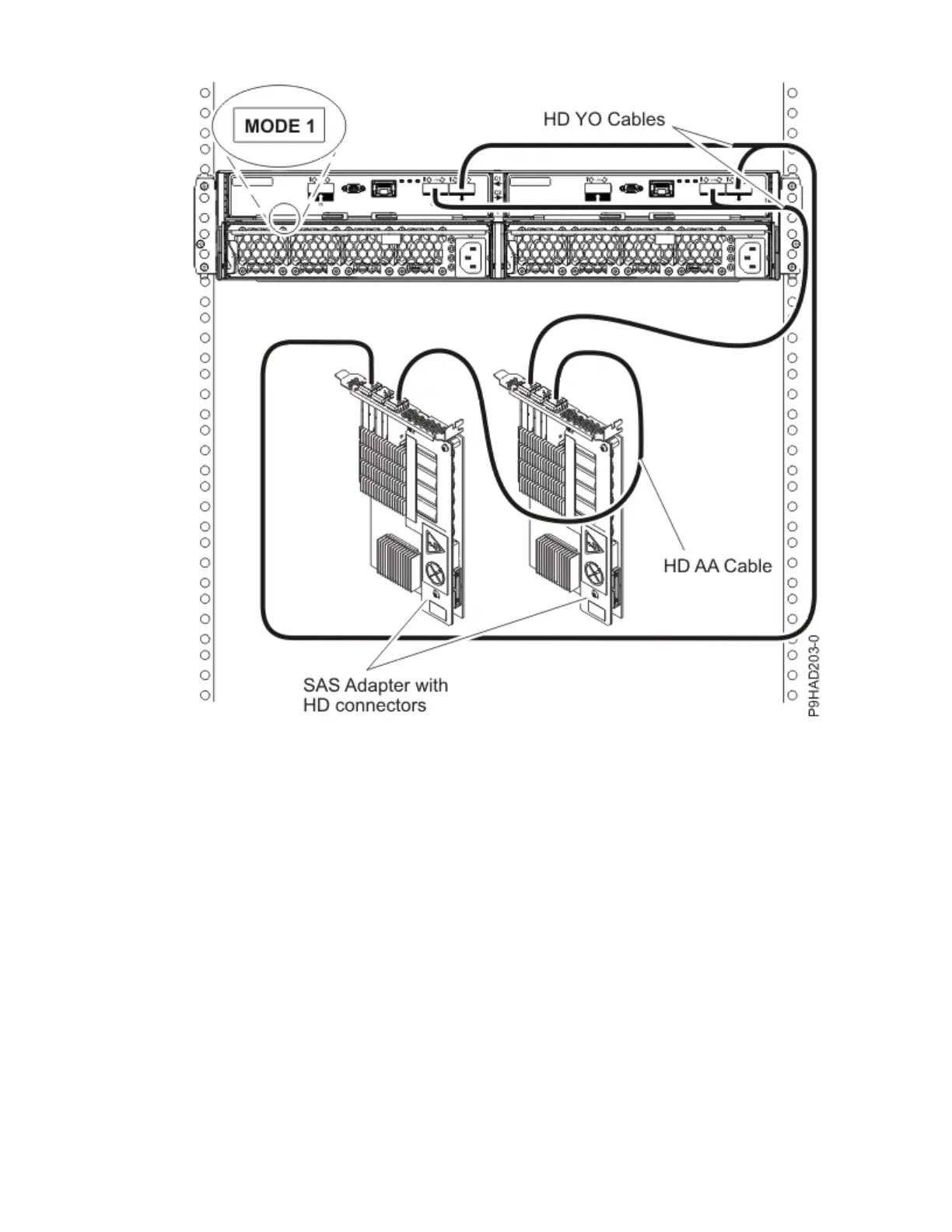

Figure 43. Two RAID SAS adapters with HD connectors to a disk expansion drawer in a multi-initiator HA
mode
Site and hardware planning
119
