Notes:
• No cascading allowed for the 5887 storage drawer.
• The 5887 storage drawers are connected to same numbered port on each adapter.
• HD AA cable is required.

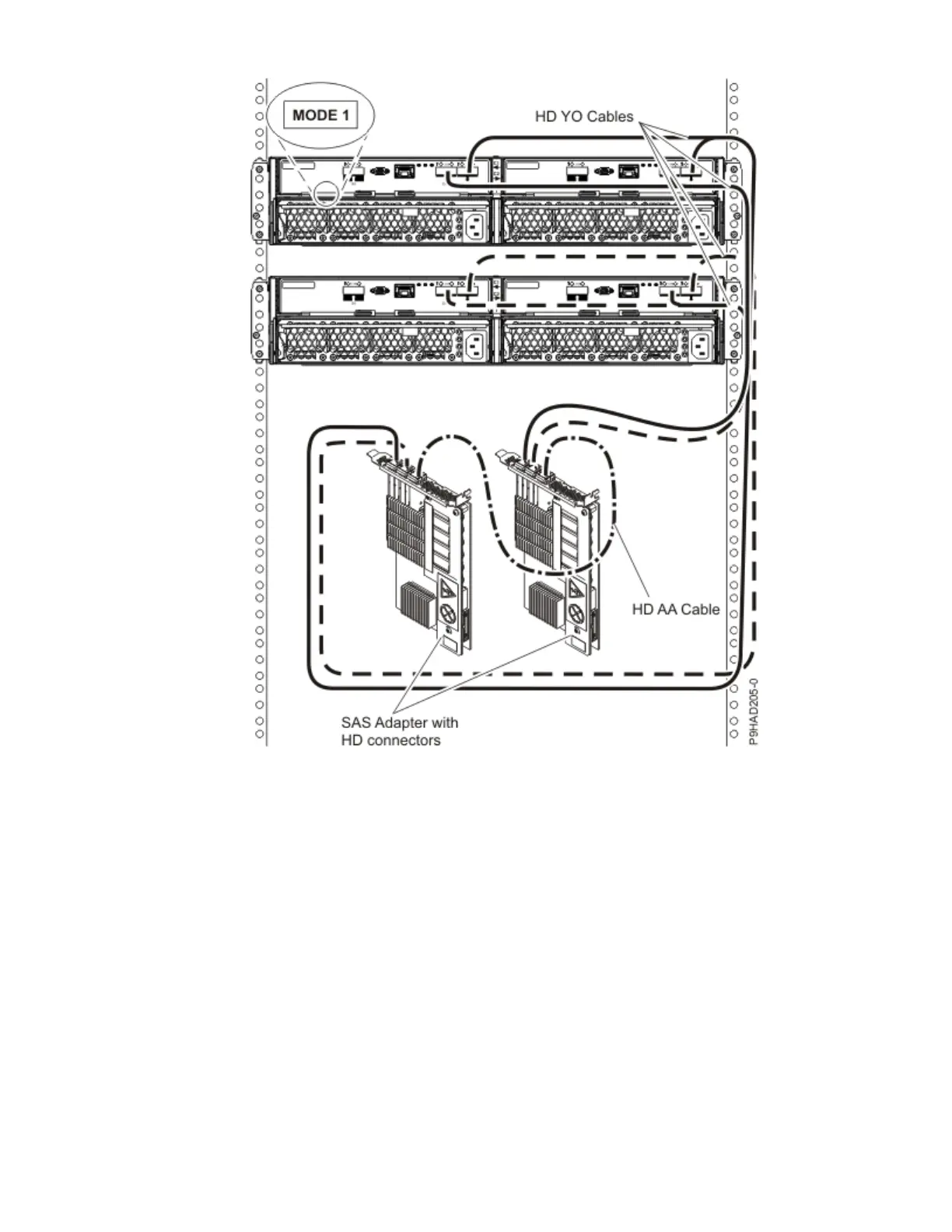

Figure 44. Two RAID SAS adapters with HD connectors to two disk expansion drawer in a multi-initiator HA
mode
120
Power Systems: Site and hardware planning
