IBM 9223-22S Site And Hardware Planning

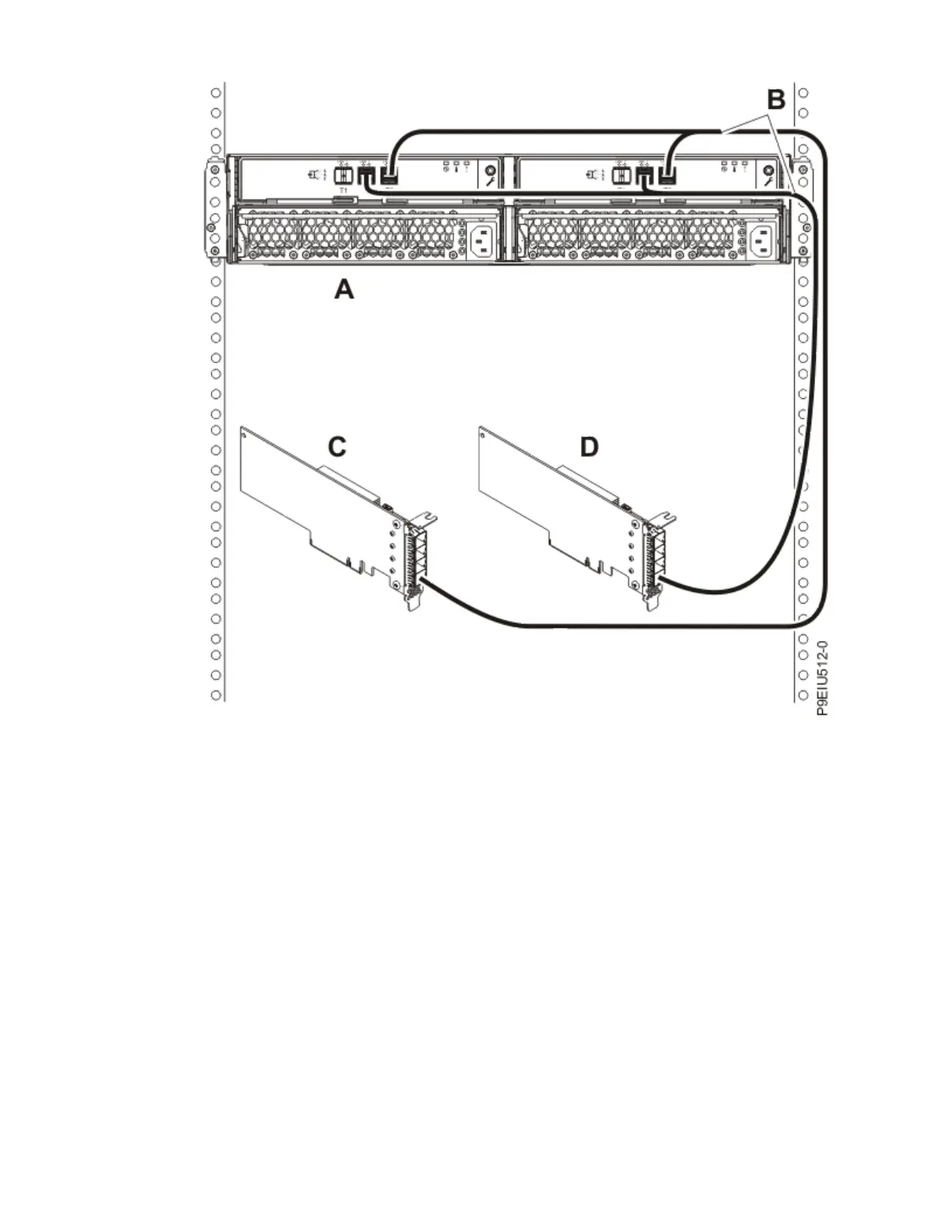

Figure 58. Mode 2 connection of ESLL or ESLS storage enclosure by using YO12 cables to two
independent SAS adapters
6. Two pairs of SAS adapters to one ESLL or ESLS storage enclosure by using a mode 2 connection.
• For SAS adapter pairs, you must attach the cables to the same port on both adapters.
• Connection by using SAS X12 cables to connect to the ESLL or ESLS storage enclosure.
136
Power Systems: Site and hardware planning
