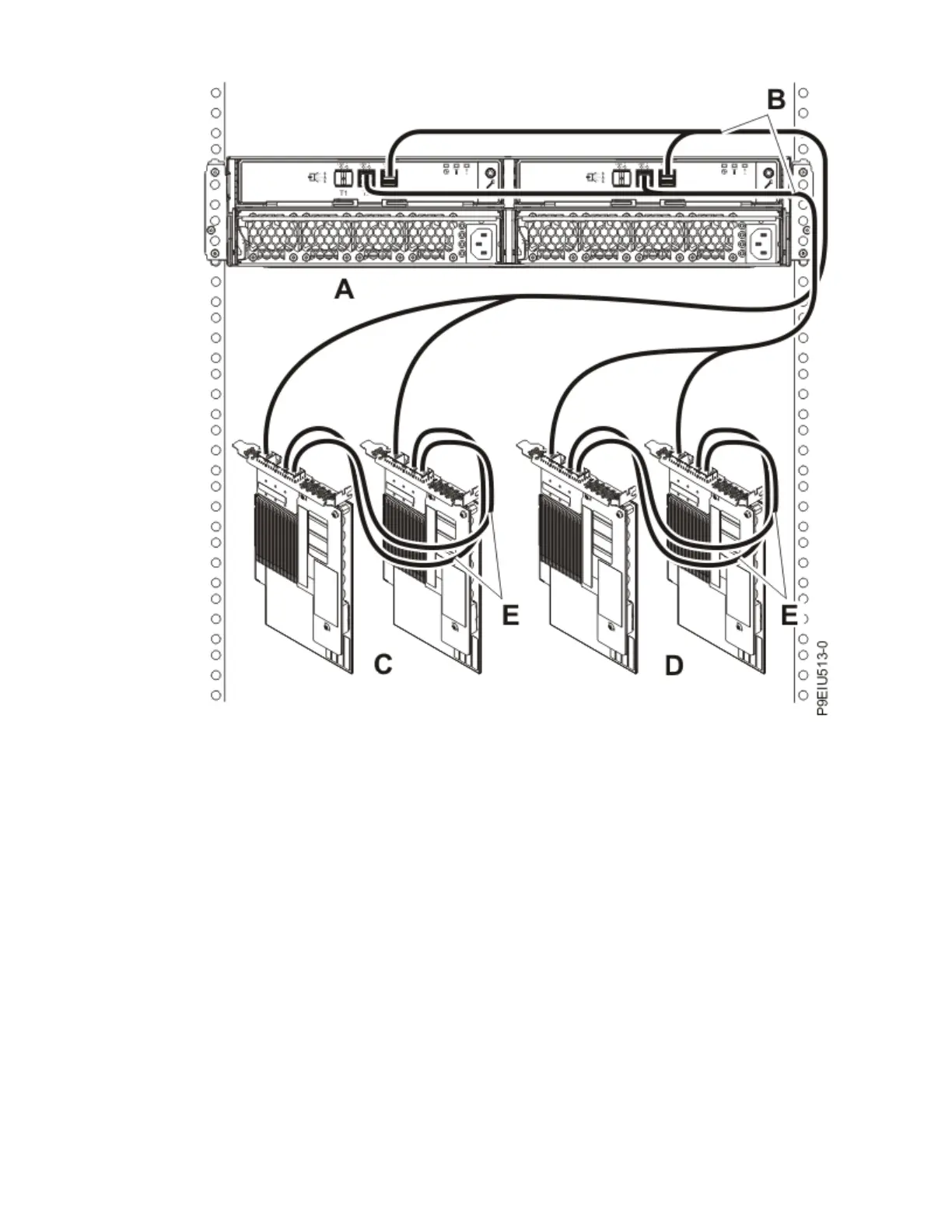

Figure 59. Mode 2 connection of one ESLL or ESLS storage enclosure by using X12 cables to two pairs of
SAS adapters
7. Four independent SAS adapters to one ESLL or ESLS storage enclosure by using a mode 4 connection.
• For SAS adapter pairs, you must attach the cables to the same port on both adapters.
• Connection by using SAS X12 cables to connect to the ESLL or ESLS storage enclosure.
Site and hardware planning
137
