Back views of a model 9113-550 server
View the ports and connections on the model 9113-550 server.
This diagram shows you the back view of a 9113-550 server. Connections and ports are labeled to
facilitate the setup process.
Back view of the OpenPower 710 server
View the ports and connections on the OpenPower 710 server.
This diagram shows you the back view of a OpenPower 710 server. Connections and ports are labeled to
facilitate the setup process.
Back views of the OpenPower 720 server
View the ports and connections on the OpenPower 720 server.
This diagram shows you the back view of a OpenPower 720 server. Connections and ports are labeled to
facilitate the setup process.

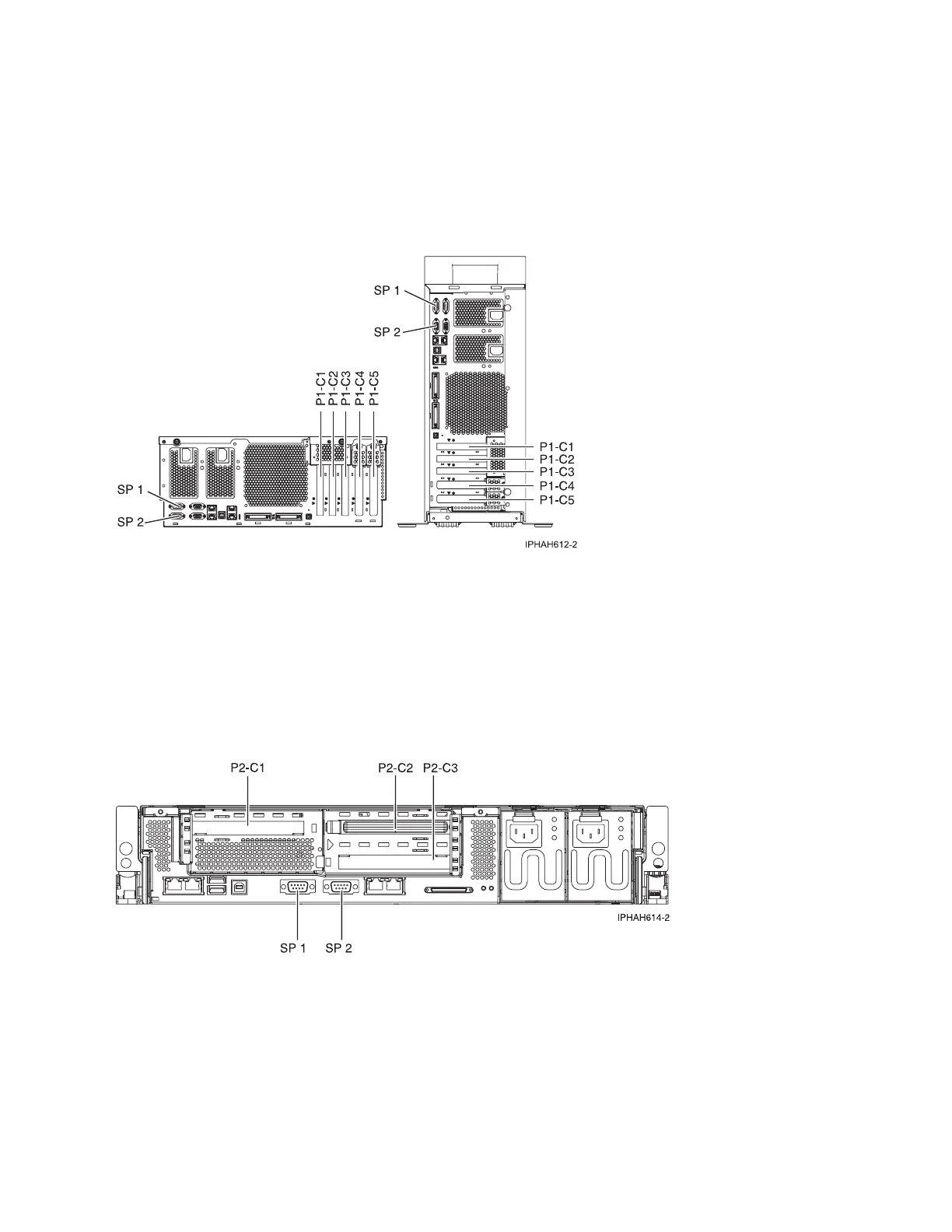

Figure 20. Back views of a model 9113-550 server
Figure 21. Back view of the OpenPower 710 server
Cabling your server 261
