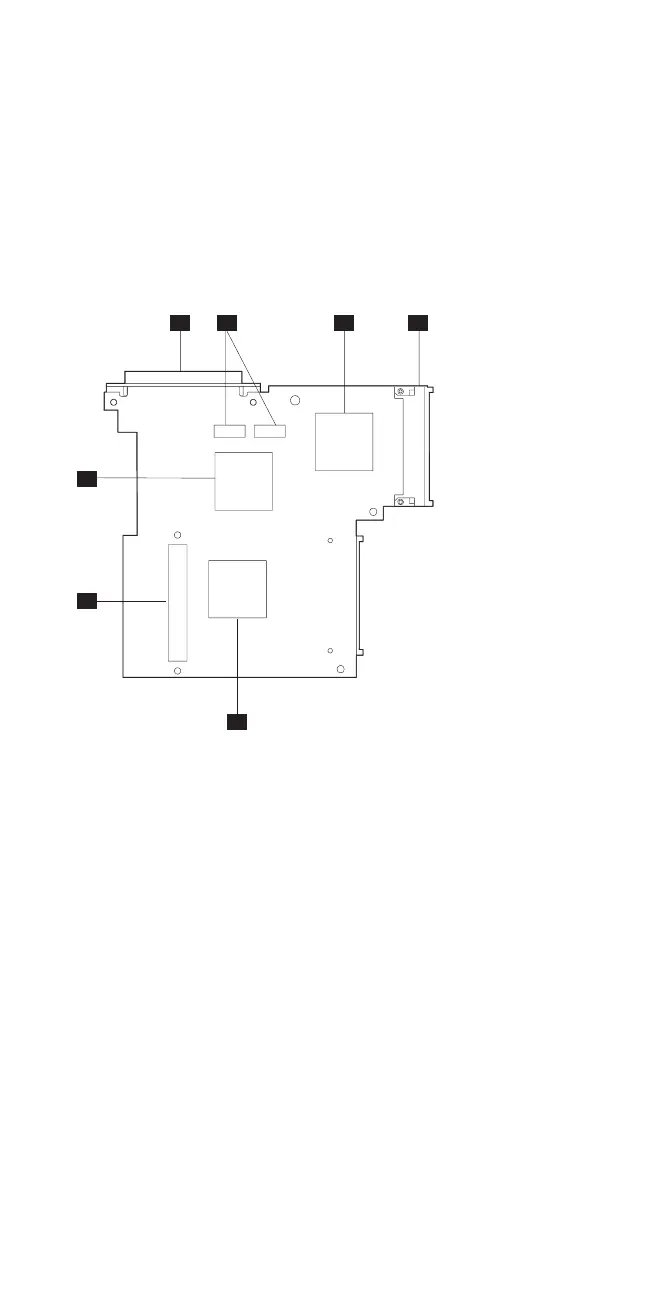

Bottom System Board (Top View)
▌1▐ System Expansion Connector
▌2▐ LCD Connectors
▌3▐ PCMCIA Controller
▌4▐ PCMCIA Slots
▌5▐ System Controller
▌6▐ Board-to-Board Connector
▌7▐ Video Controller
3
6
2
5
1
7
4
186 IBM Mobile Systems HMM
