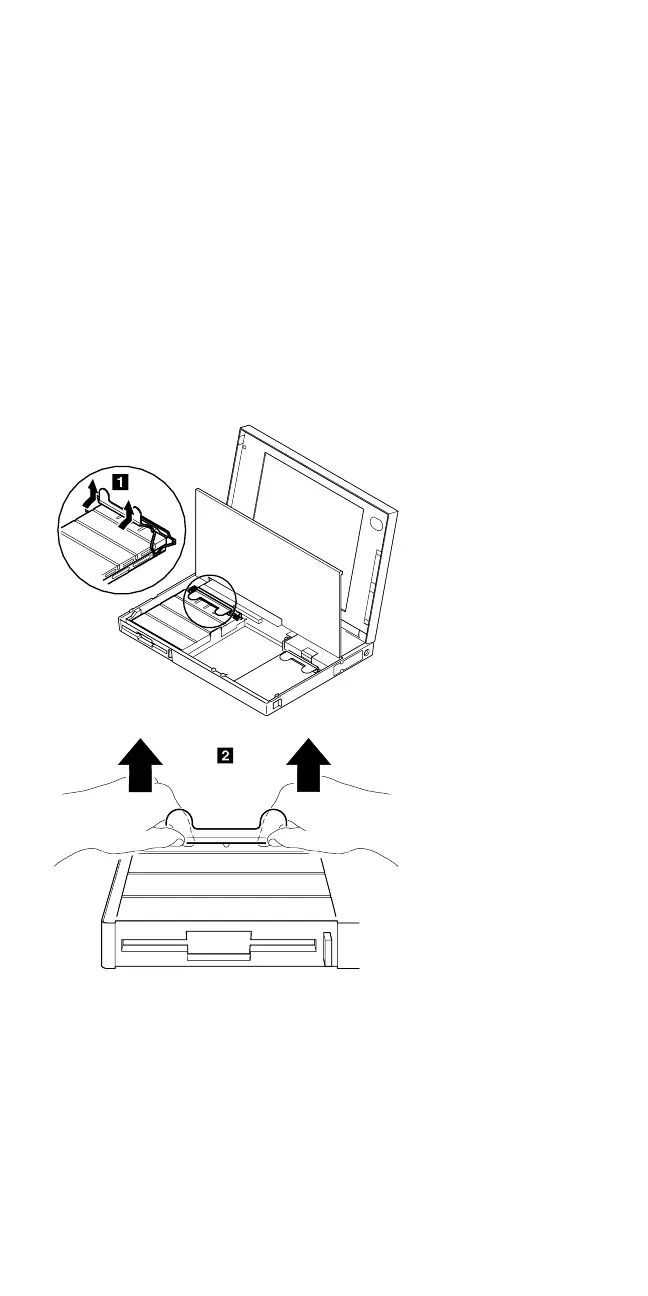

2030 Diskette Drive
Battery Pack (2020)
Warning:
1. Check that the backup battery and standby
battery are seated correctly to prevent damage to
the diskette drive when replacing the diskette drive.
2. Do not put any pressure on the diskette drive
cover. Remove the diskette drive exactly as shown
in the figure.
3. Make sure that a diskette is not installed in the
drive. Removing the drive with a diskette installed
causes bending or damaging the eject button.
After replacing the diskette drive, latch the removal strap
into the correct position.
ThinkPad 355x, 360x, 370C, 750x, 755C, 755Cs
263
