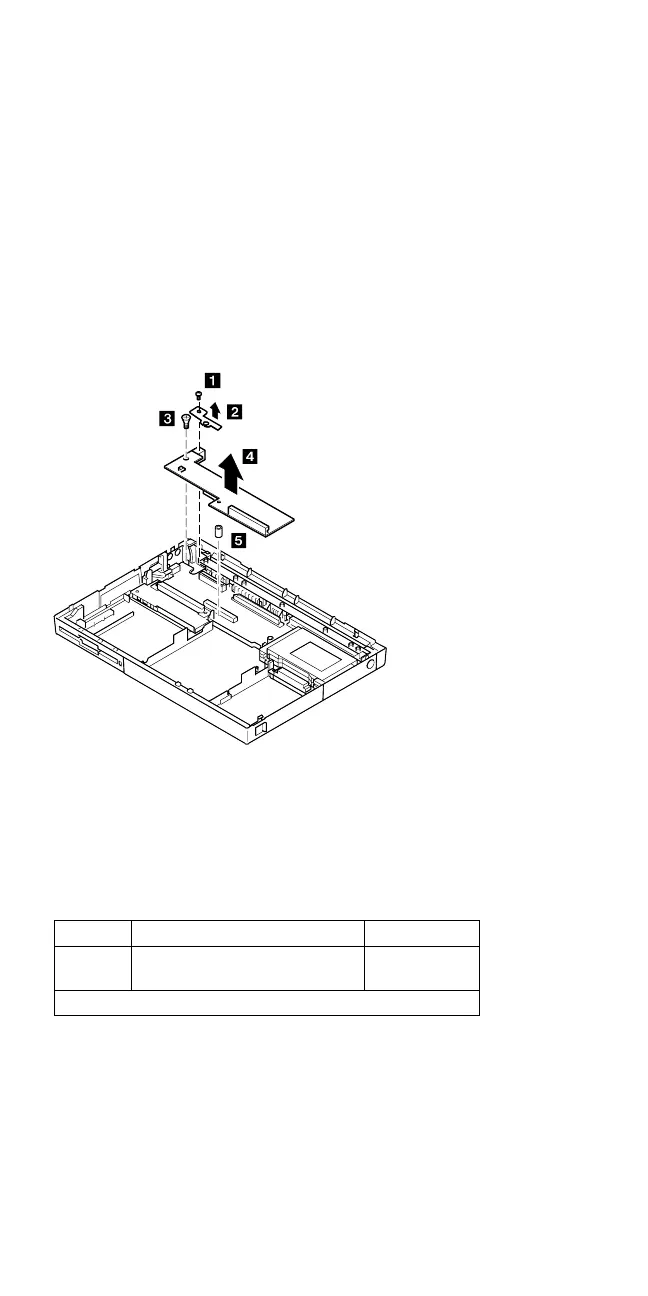

1100 DC/DC Card
Battery Pack (1020)
Diskette Drive (1030)
Hard Disk Drive (1035)
Keyboard Unit (1040)
Status Indicator (1060)
LCD Assembly (1070)
Speaker Shield Assembly (1090)
Modem Card (1080)
Interposer Card (1095)
Notes:
1. When replacing the DC/DC card, put the spacer▌5▐
on the screw hole.
2. DC-in holder ▌A▐ and spacer ▌5▐ are supplied as
miscellaneous parts.
Use the following table for reference when replacing parts.
Step Location (Quantity) Length
▌3▐ Power jack (1) 8 mm
(flat head)
Note: Make sure you use the correct screw.
ThinkPad 355x, 360x, 370C, 750x, 755C, 755Cs 255
