1080 Keyboard Unit
Battery Pack (1020)
Top Cover (1060)

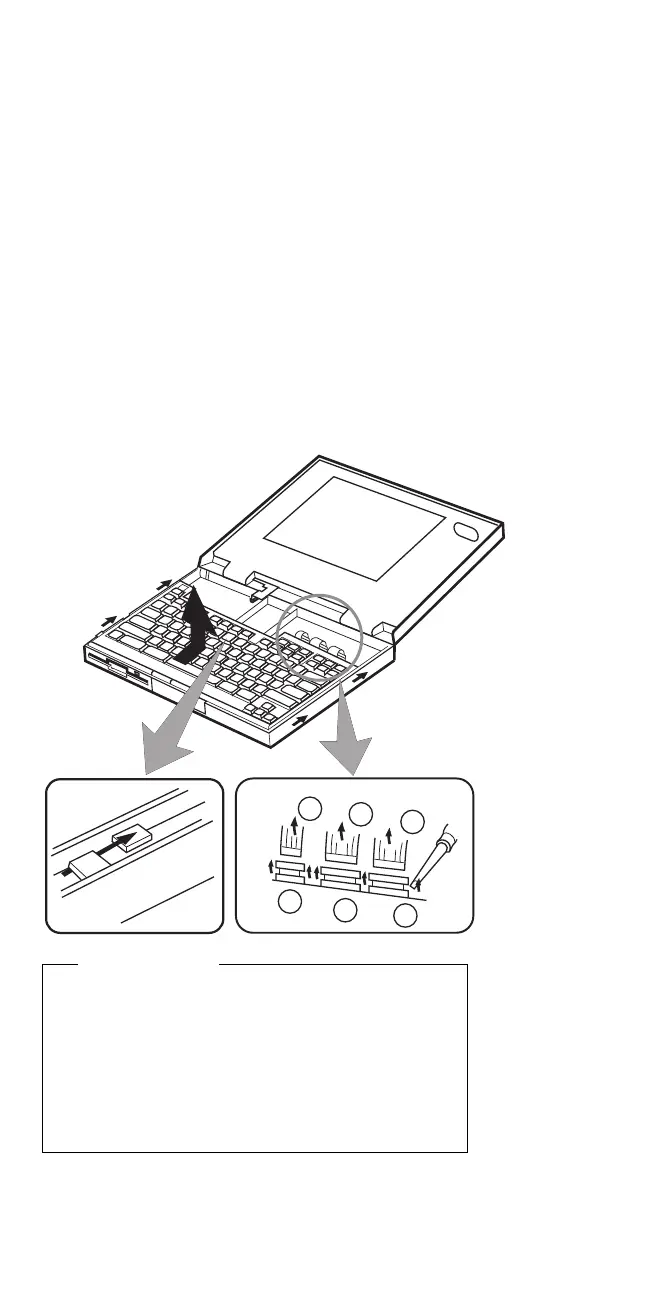

Notes:
1. There are two keyboard latches on each side of the
computer frame. Slide the keyboard as shown in step
2 to release the keyboard from those latches; them
remove the keyboard. (Small arrows on the both
sides of the keyboard show the locations of the
latches.)
2. The keyboard has three cables; be careful not to
damage the cables when you open the keyboard and
to remove them.
11
2
2
1
2
2
2
1
1
When Replacing
Check that the three keyboard cables are clean,
and inserted straight and fully into the
connectors. Slide both ends of each connector
latch at the same time to make sure that each
cable is correctly inserted.
Go to “Keyboard/Auxiliary Input Device Checkout”
on page 27 and test all keys before returning the
computer to the customer.
54 IBM Mobile Systems HMM
