IBM 9545 User Manual

1120 System Board/Speaker
 Rear Connector Door (1010)
 Battery Pack (1020)
 Backup Battery (1030)
 IC DRAM Card (1040)
 Standby Battery (1050)
 Top Cover (1060)
 Indicator Card (1070)
 Keyboard Unit (1080)
 Diskette Drive (1100)
 Hard Disk Drive (1110)

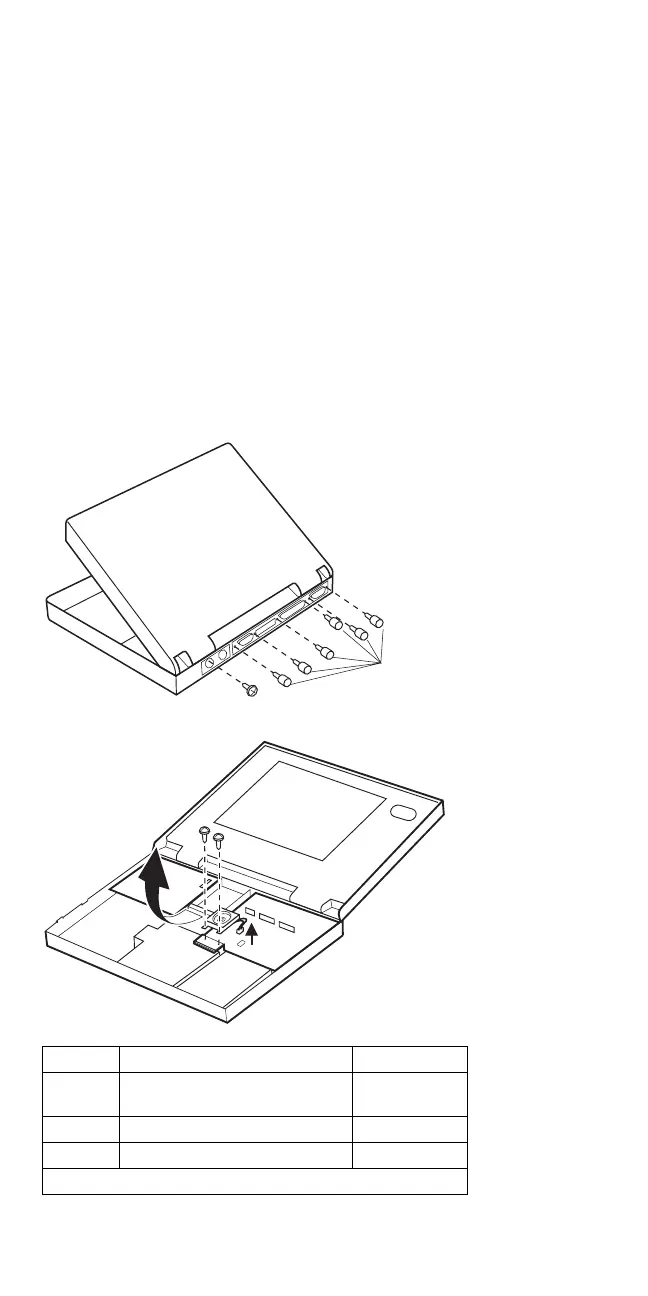

Step 1, 2, 3, 4: System Board
Step 4, 5: Speaker
11
2
2
33
4
4
55
Step Location (Quantity) Length
▌1▐ I/O connector (6) Hex-head
screws
▌2▐ Base cover (1) 8 mm
▌3▐ Base cover (2) 12 mm
Note: Make sure you use the correct screws.
