location in relation to the cable entry point are critical to the successful installation
of a top cable exit.
Figure 18 illustrates the location of the cabling for the top exit bracket for Fibre
cable feature. When you order a top exit feature, the feature includes clamping
hardware, internal cable routing brackets for rack 1 or rack 2, and two top exit
mainline power cords for each rack. The following notes provide more information
about the color-coded cable routing and components in Figure 18.
î1î Customer Fibre Channel host cables. The Fibre Channel host cables, shown
in red, are routed from the top of the rack down to I/O enclosure host adapter
cards.
1
2
f2c01680
3

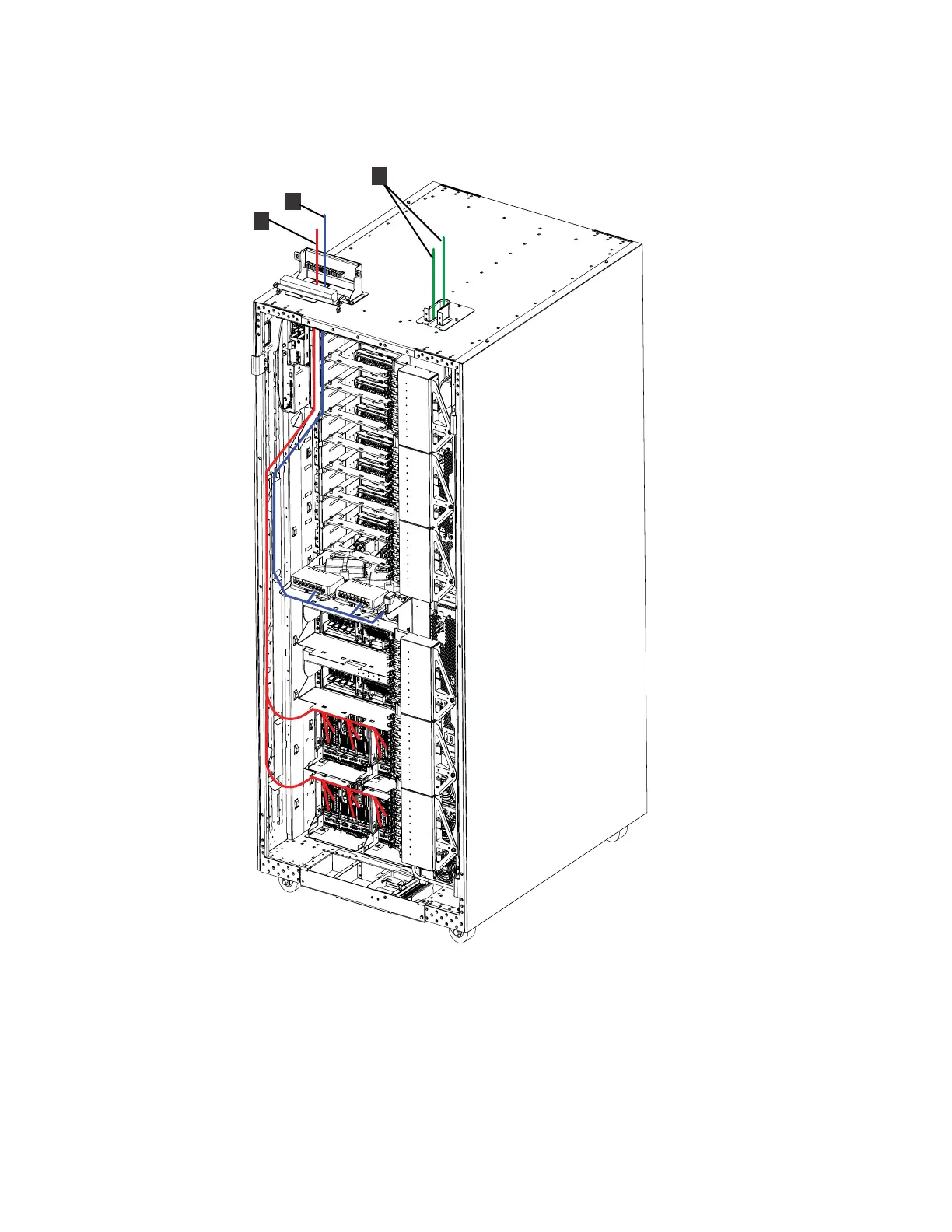

Figure 18. DS8000 with top exit feature installed (cable routing and top exit locations)
144 Introduction and Planning Guide
