IBM iSeries 270 - Locations - FC 5088, FC 0588 Expansion I;O Unit

Note: Service the FC 5079 as two independent FC 5074 towers in the same 1.8 meter rack. See
Locations - FC 5074 Expansion I/O Tower.
Locations — FC 5088, FC 0588 Expansion I/O Unit
For use by authorized service providers.
The following diagram shows field replaceable unit (FRU) layout in the FC 5088, FC 0588 Expansion I/O
Unit. Use it with the tables below. If you need address information, refer to Addresses — FC 5088, FC
0588 Expansion I/O unit.

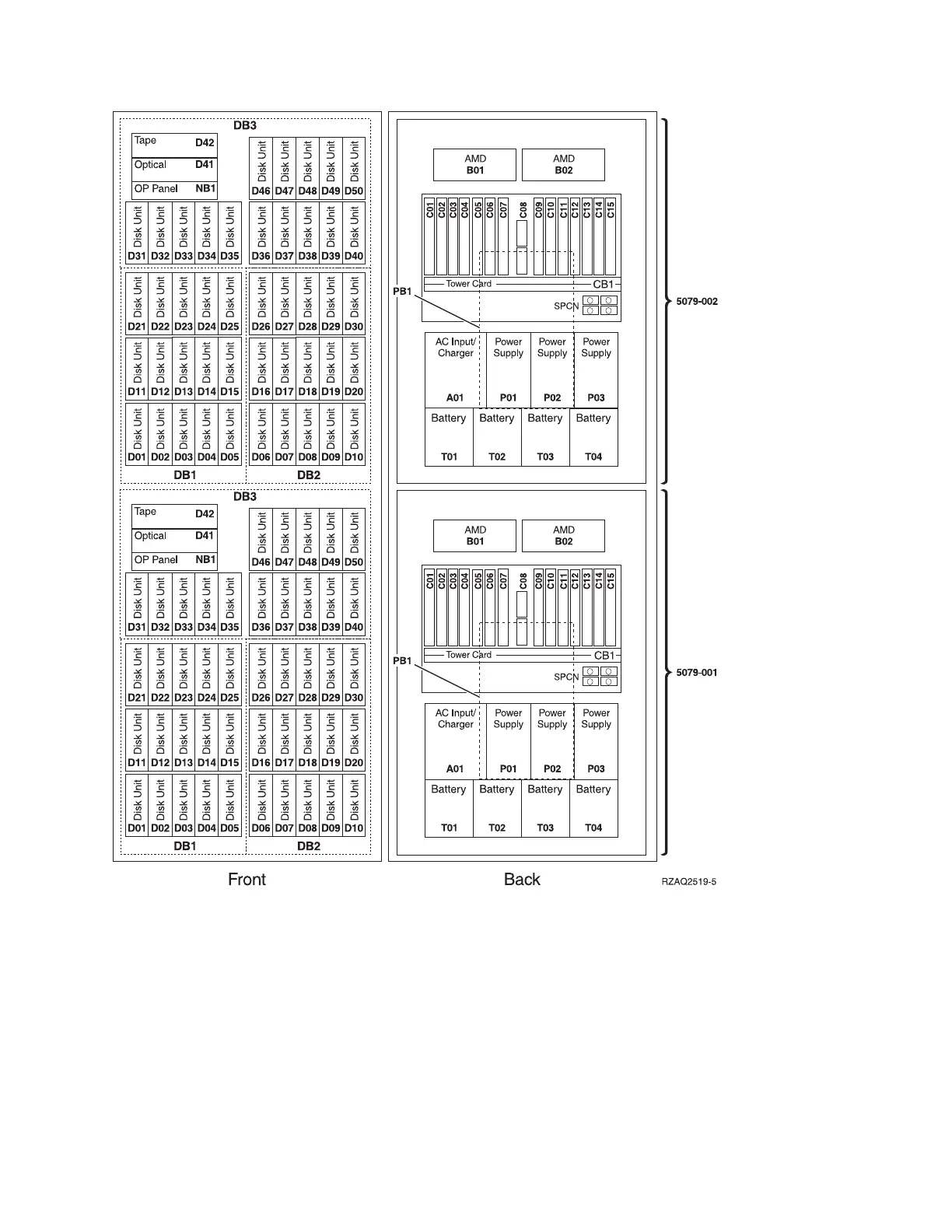

Figure 1. FC 5088, FC 0588 Expansion I/O Unit
Analyze hardware problems 305
