Table 1. Cover assembly — FC 5078, FC 5088
Index Part number Units Description
1 21P4986 1 Top cover
2 1621811 6 Screw, M4 (10mm)
3 44L0247 1 Rear cover
4 24L0824 2 Side cover
5 1621811 16 Screw, M4 (10mm)
6 24L1069 1 Front cover, lower
7 44L0252 1 Front cover, upper
Final assembly — FC 5074, FC 5094: For use by authorized service providers.

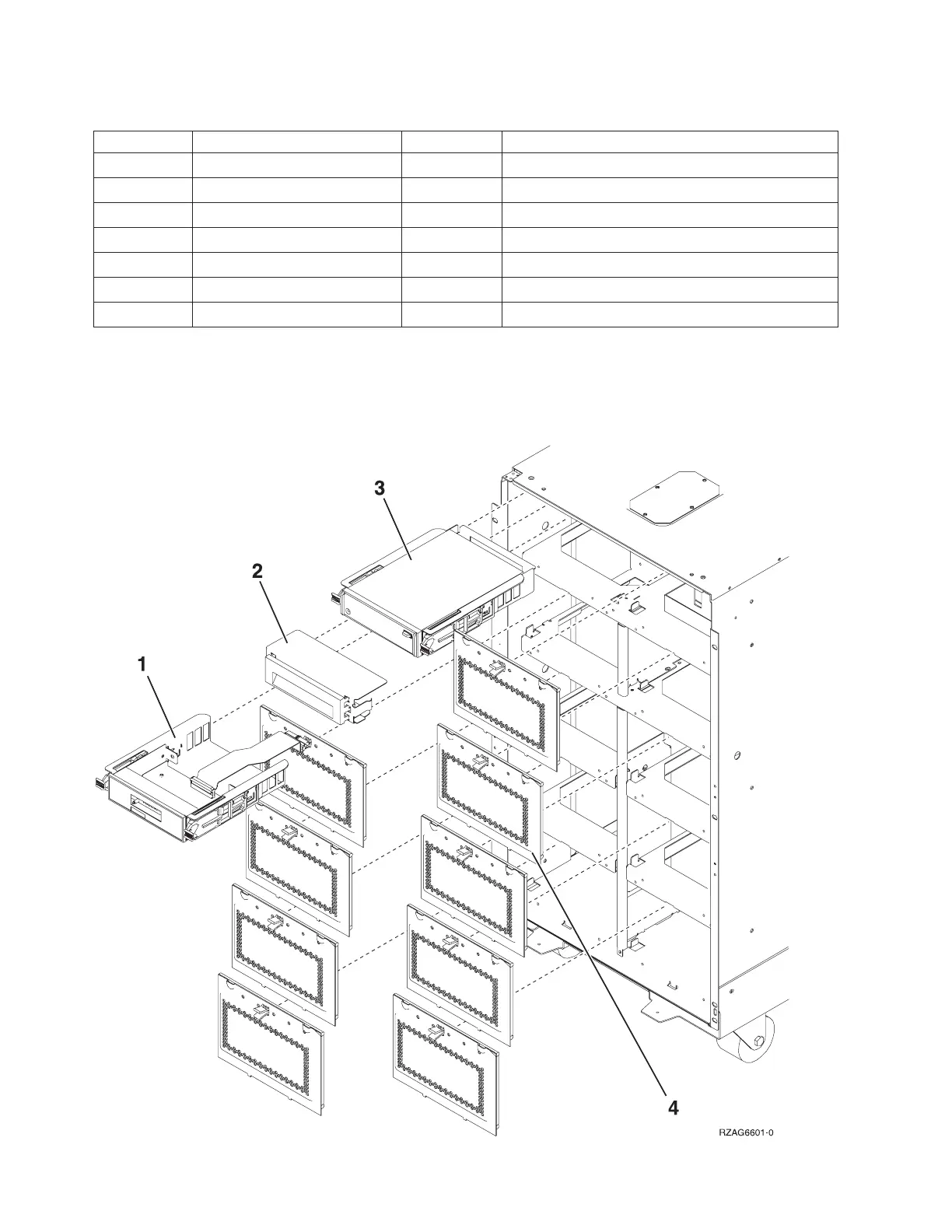

Figure 1. Final assembly — FC 5074, FC 5094
454 Hardware (Remove and Replace; Part Locations and Listings)
