Index Part number Units Description
3 44L0247
24L1071
1 Cover assembly, rear
Hinge pin, top
4 24L0824 1 Cover, side
5 1621811 6 Screw, M4 (10mm)
6 24L1069
24L1071
1 Cover assembly, lower front
Hinge pin, top
7 44L0243 1 Cover, upper front
Control panel assembly - Models 830 and SB2 with FC 9074: For use by authorized service providers.

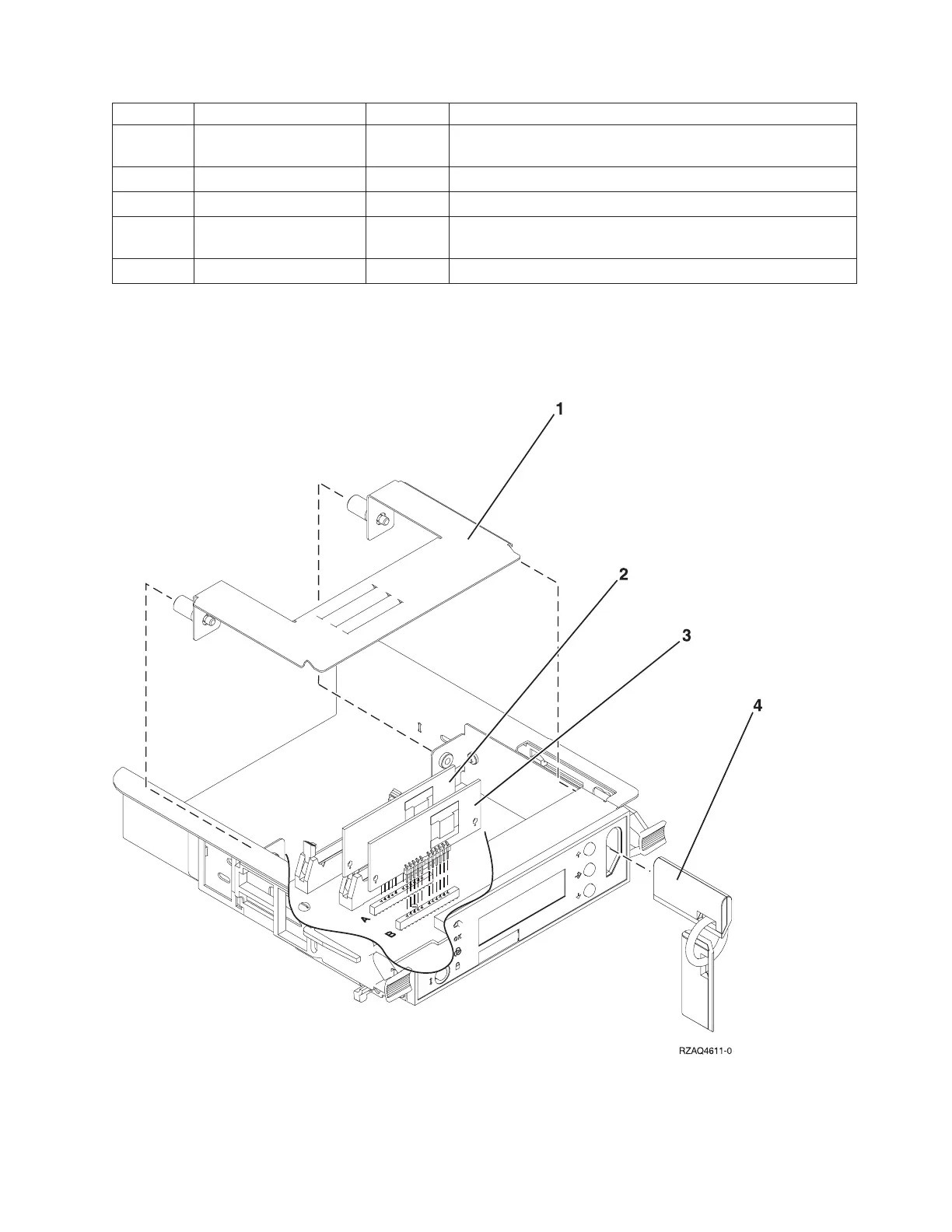

Figure 1. Control panel assembly - Models 830 and SB2 with FC 9074
Table 1. Control panel assembly - Models 830 and SB2 with FC 9074
