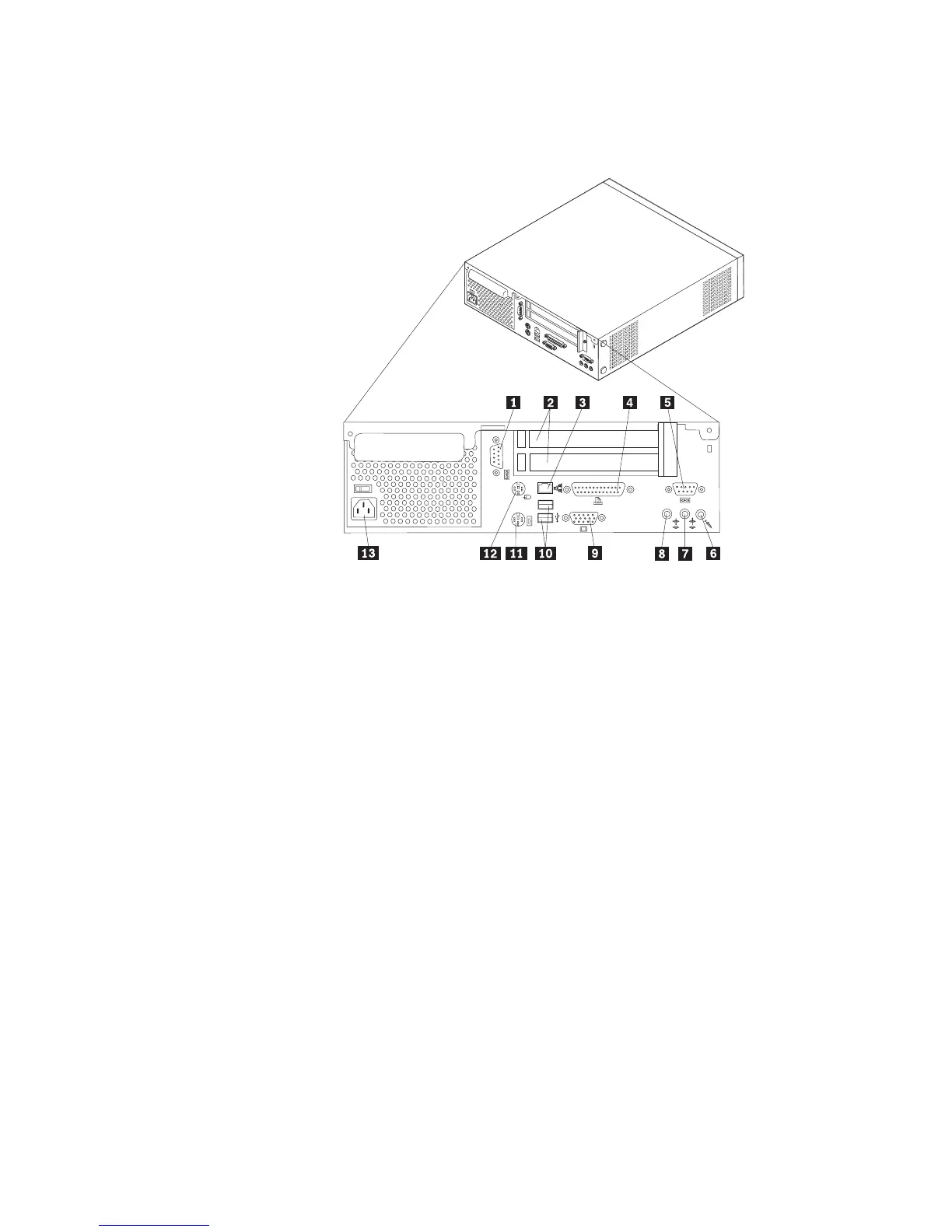

Locating connectors on the rear of your computer
The following illustration shows locations of connectors on the rear of your
computer.
1 Serial connector 8 Audio line-out connector
2 PCI adapter slots 9 VGA monitor connector
3 Ethernet connector 10 USB connectors (2)
4 Parallel connector 11 PS/2 keyboard connector
5 Serial connector 12 PS/2 mouse connector
6 Microphone connector 13 Power cord connector
7 Audio line-in connector
Note: Some connectors on the rear of your computer are color-coded to help
determine where to connect the cables.
Obtaining device drivers
You can obtain device drivers for operating systems that are not preinstalled at
http://www.ibm.com/pc/support/ on the World Wide Web. Installation
instructions are provided in README files with the device-driver files.
8 User Guide
