10. Connect any additional devices that you have. Your computer might not
have all connectors that are shown.
1
3
9
4
1
3
9
4

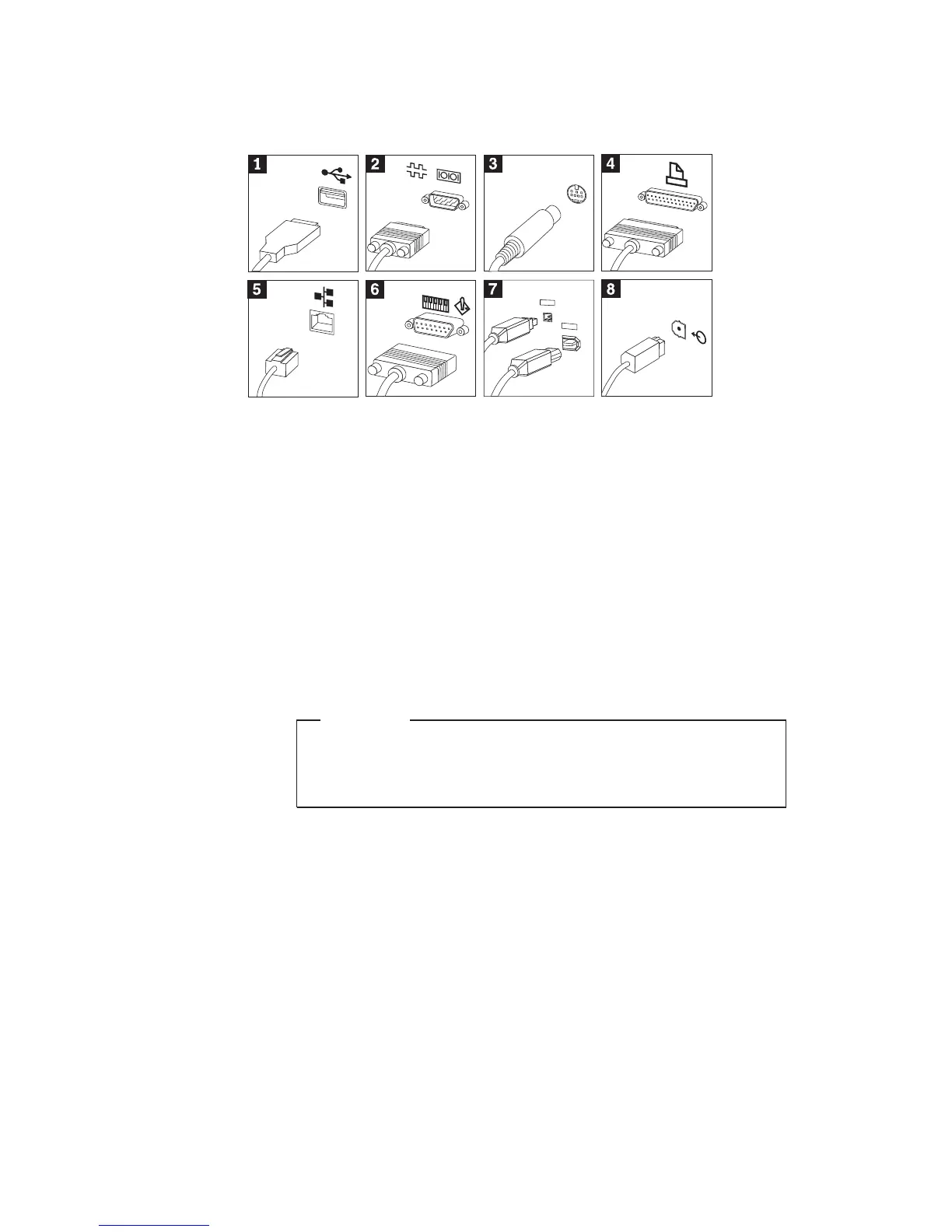

1 USB Use these connectors to attach a device that requires a Universal
Serial Bus (USB) connection, such as a USB scanner, printer, or
personal digital assistant (PDA).
2 Serial Use this connector to attach an external modem, serial printer, or
other device that uses a 9-pin serial connector.
3 S-video Use this connector to attach a television set that has an S-Video
connector. This connector is present on some high-performance
video adapters.
4 Parallel Use this connector to attach a parallel printer or any other device
that requires a 25-pin parallel connection.
5 Ethernet Use this connector to attach the computer to an Ethernet-type local
area network or to a cable modem.
Important
To operate the computer within FCC limits when it is
connected to an Ethernet network, use a Category 5 Ethernet
cable.
6 MIDI/joystick Use this connector to attach a joystick, gamepad, or a musical
instrument digital interface (MIDI) device such as a MIDI
keyboard.
7 IEEE 1394 This connector is sometimes called Firewire because it transmits
data rapidly. There are two types of IEEE 1394 connectors: the
4-pin and the 6-pin. IEEE 1394 offers connection to several types of
consumer electronics, including digital audio devices and scanners.
8 S/PDIF The S/PDIF connector enables you to connect consumer digital
equipment such as digital audio tape (DAT) devices, CD drives,
and other S/PDIF-compatible devices.
8 NetVista
™
: Quick Reference
