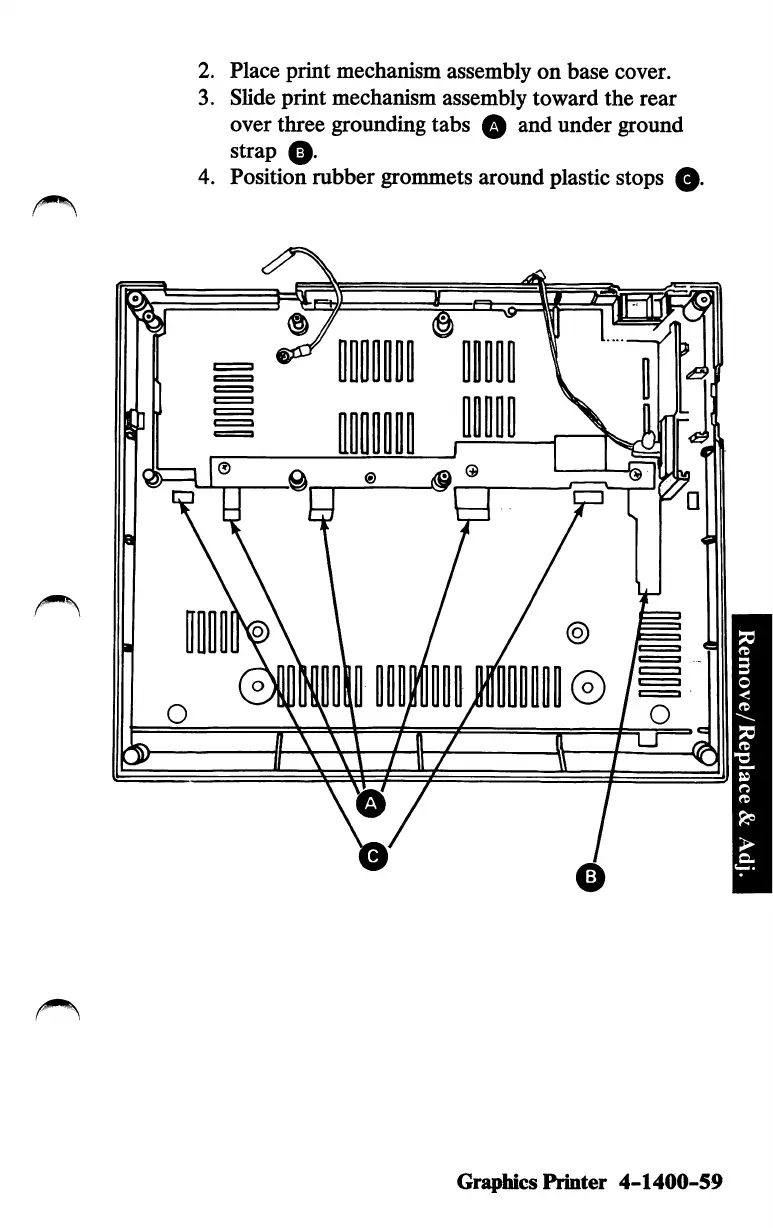

2. Place print mechanism assembly
on
base cover.
3. Slide print mechanism assembly toward the rear
overthree
groimding
tabs 0 and
vmder
ground
strap
0.
4. Position rubber
grommets
aroundplastic stops
0.
(§
Graphics
Printer
4-1400-59
