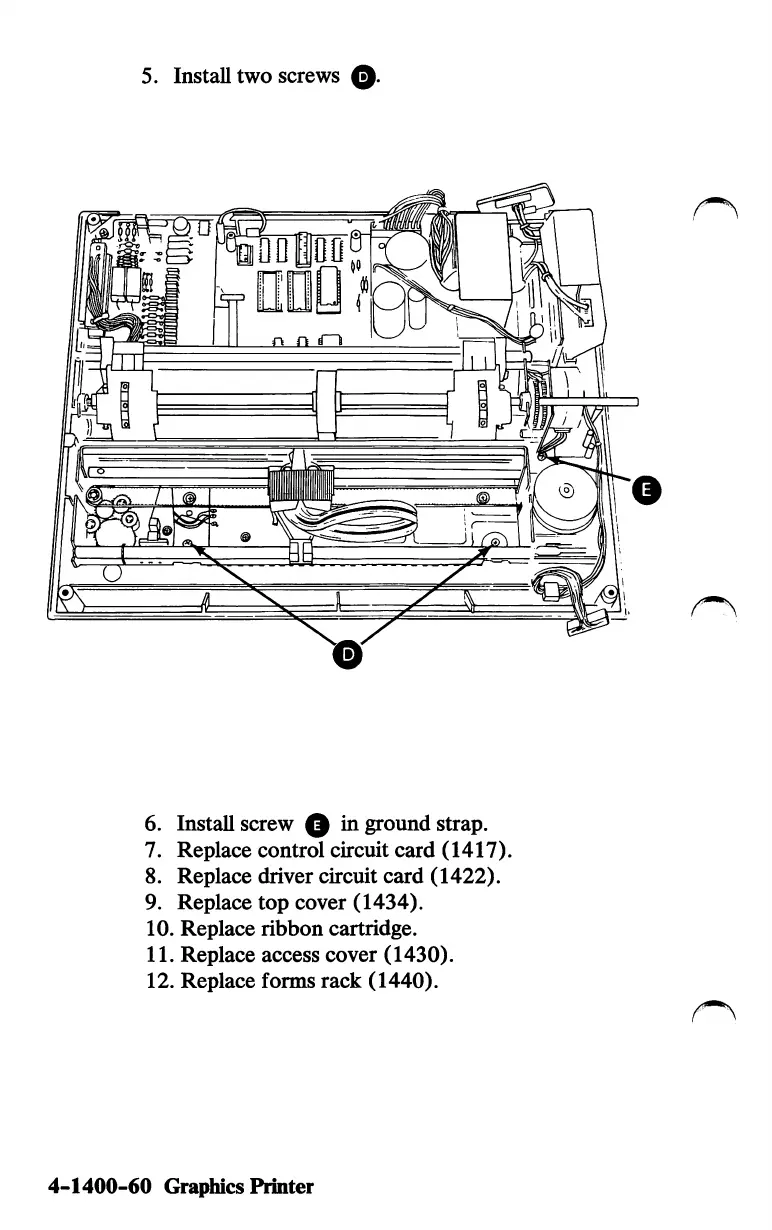

5. Install two
screws
0.
OD
6. Install
screw
0 in
ground
strap.
7.
Replace
control
circuit
card
(1417).
8. Replace driver circuit
card
(1422).
9.
Replace
top
cover
(1434).
10.
Replace
ribbon
cartridge.
11.
Replace
access
cover
(1430).
12. Replace forms
rack
(1440).
4-1400-60
Graphics
Printer
