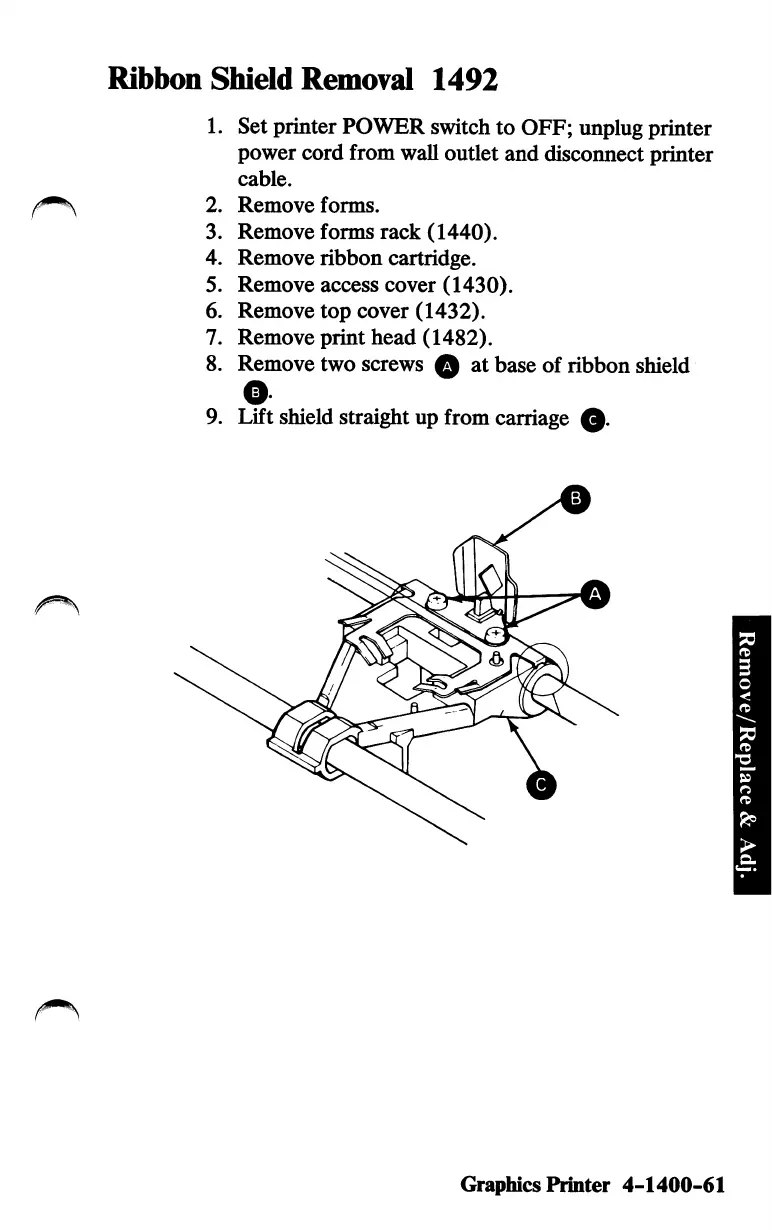

Ribbon Shield Removal 1492
1. Set printer POWER switch to OFF; unplug printer
power cord from wall outlet and discoimect printer
cable.
2. Remove forms.
3. Remove forms rack (1440).
4. Remove ribbon cartridge.
5. Remove access cover (1430).
6. Remove top cover (1432).
7. Remove print head (1482).
8. Remove two screws 0 at baseof ribbon shield
o
9. Lift
shield straight upfrom carriage 0.
Graphics Printer 4-1400-61
