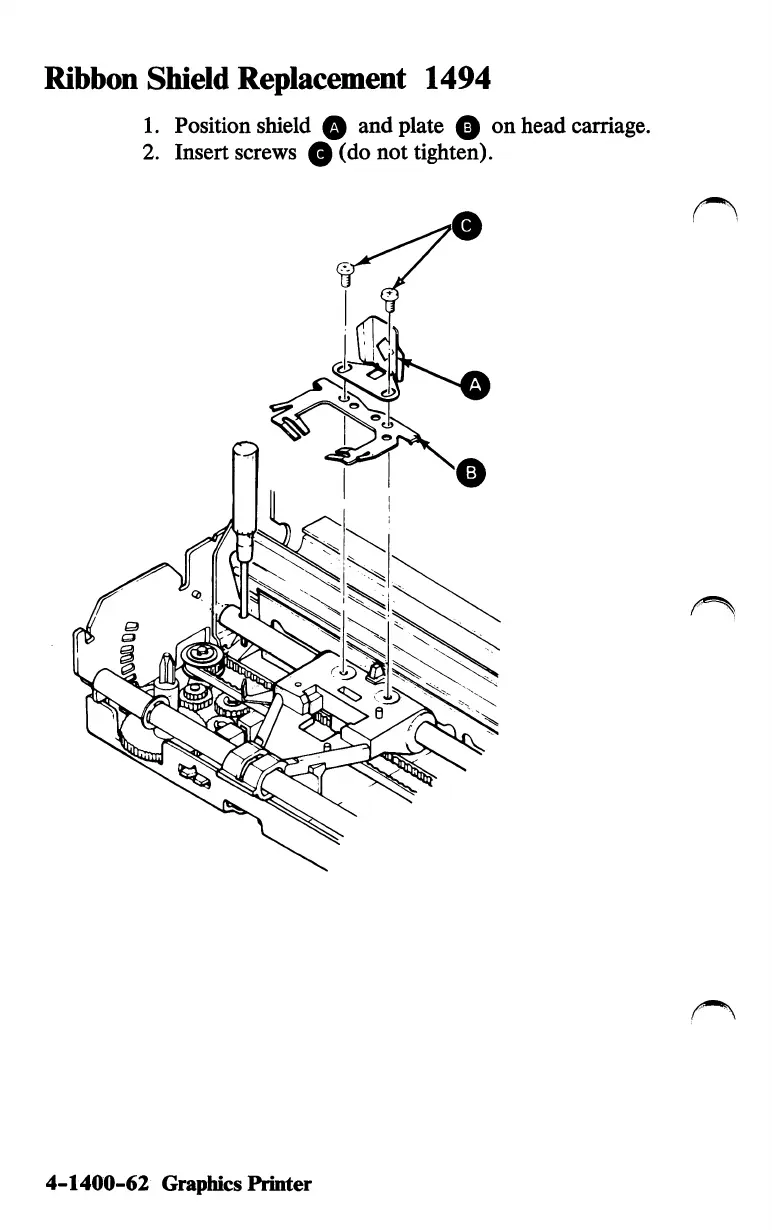

Ribbon Shield Replacement
1494
1. Position
shield
0 and plate 0 on head
carriage.
2. Insert
screws
0 (do not tighten).
4-1400-62
Graphics
Printer
