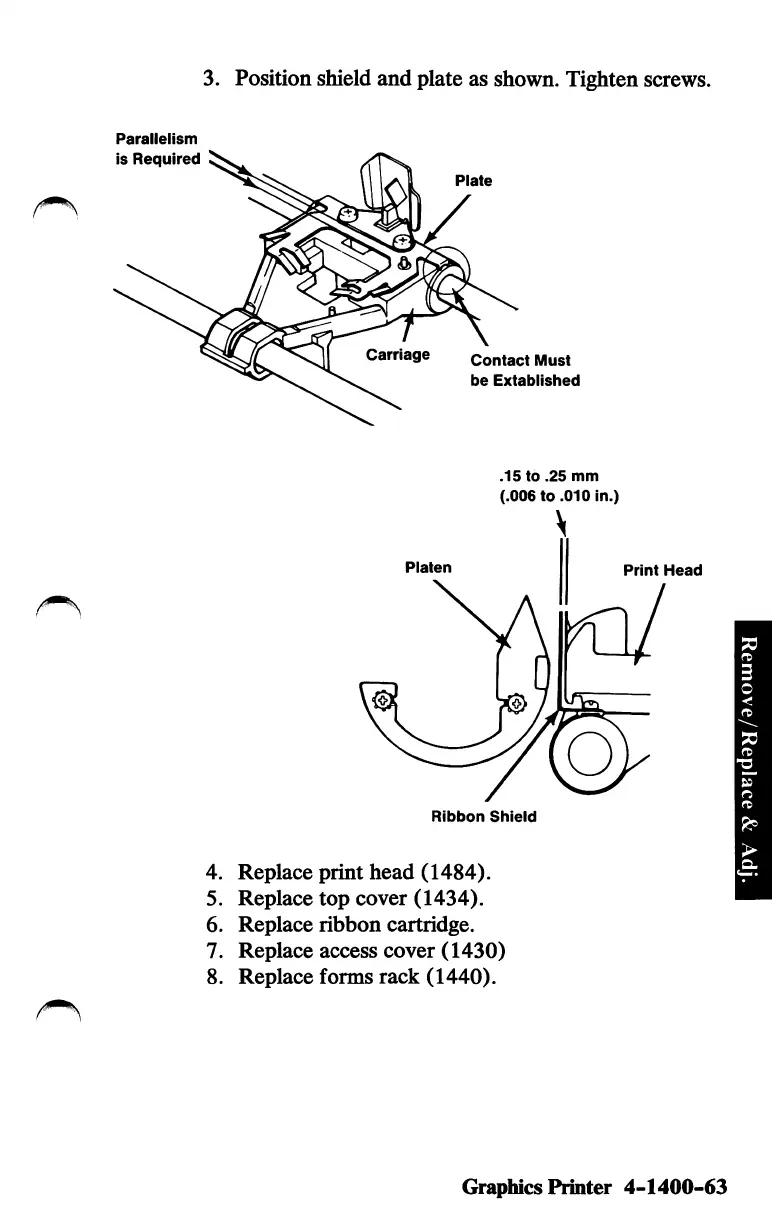

3. Position shield
and
plate as shown. Tighten screws.
Parallelism
is
Required
4.
Replace
print
head
(1484).
5.
Replace
top
cover
(1434).
6.
Replace
ribbon
cartridge.
7.
Replace
access
cover
(1430)
8.
Replace
forms
rack
(1440).
Carriage
Piate
Contact
Must
be
Extablished
.15
to
.25
mm
(.006
to
.010
in.)
Piaten
Ribbon
Shieid
Replace
print
head
(1484).
Replace
top
cover
(1434).
Print
Head
Graphics
Printer
4-1400-63
