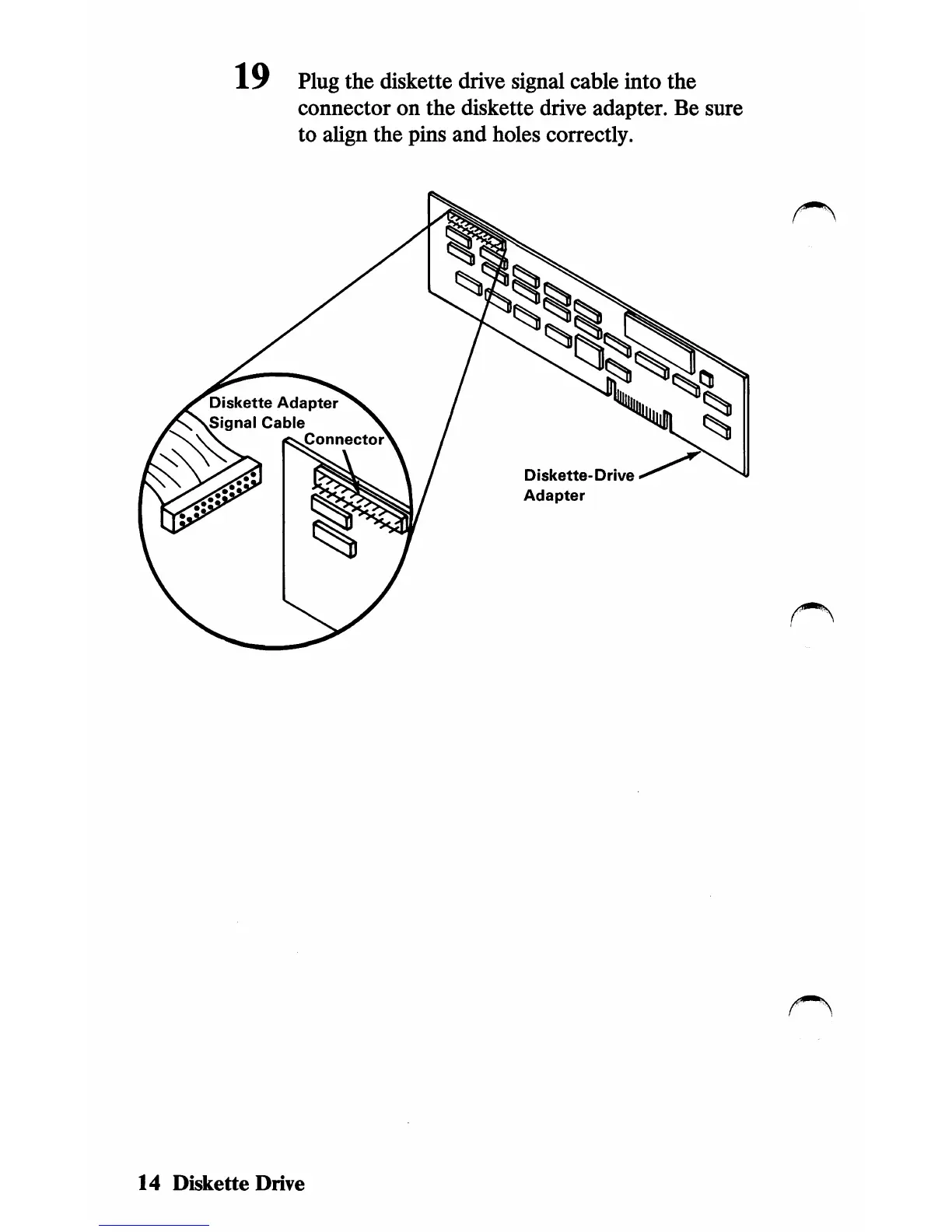

19
Plug
the
diskette
drive
signal
cable
into
the
connector
on
the
diskette drive adapter. Be sure
to
ahgn
the
pins
and
holes correctly.
Diskette
Adapter
Signal
Cable
Connector
14
Diskette
Drive
Diskette-Drive
Adapter
