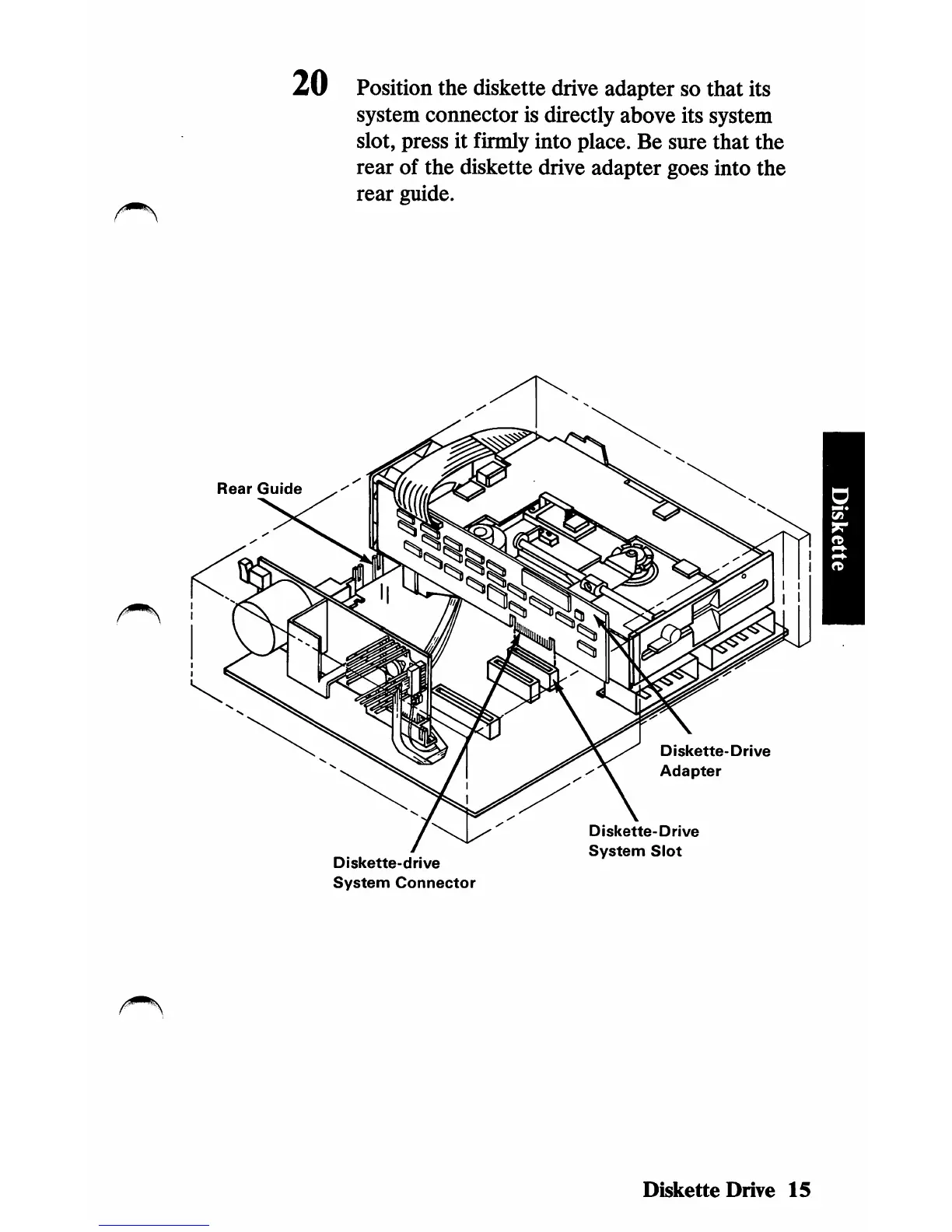

20
Position
the
diskette
drive
adapter
so
that
its
system connector is directly above its system
slot,
press
it firmly
into
place.
Be
sure
that
the
rear
of
the
diskette drive adapter goes into
the
rear
guide.
Rear
Guide
Diskette-drive
System
Connector
Diskette-Drive
Adapter
Diskette-Drive
System
Slot
Diskette
Drive
15
