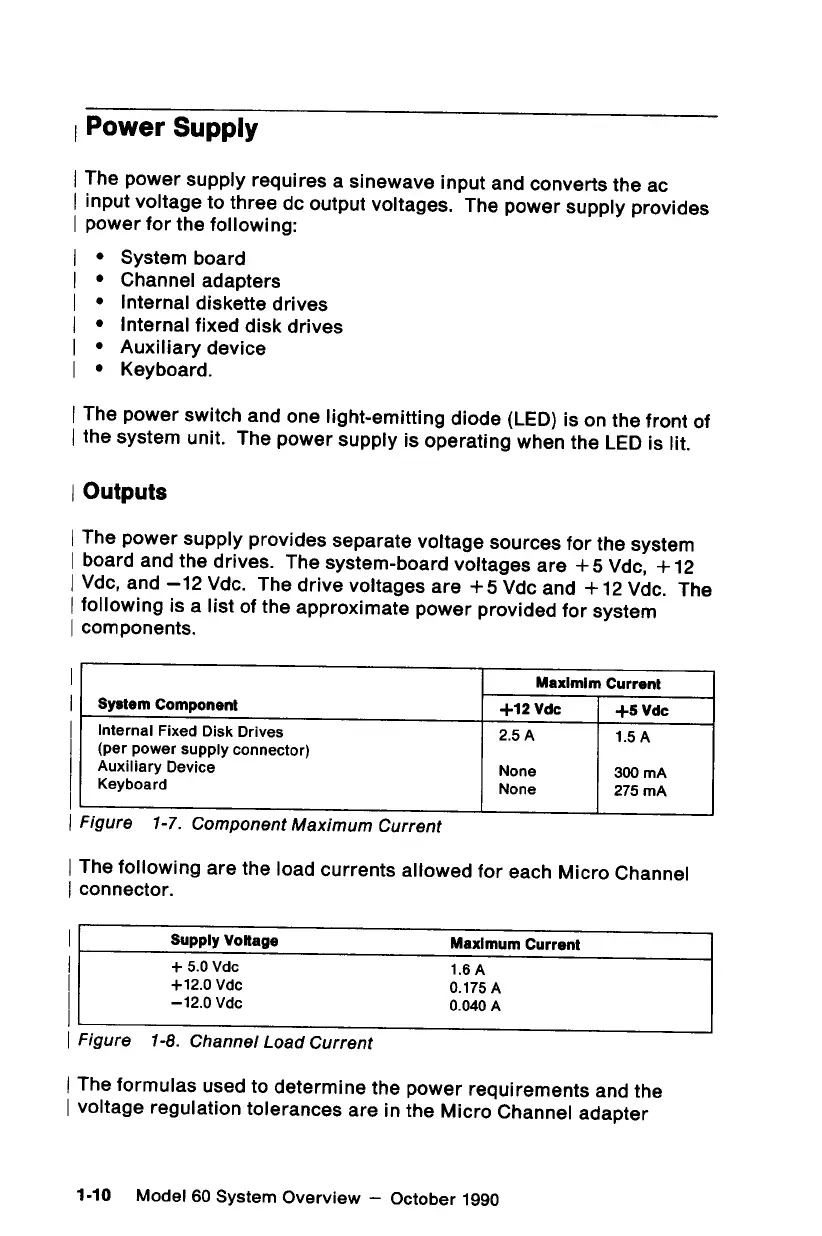

Power
Supply
|
The
power
supply
requires
a
sinewave
input
and
converts
the
ac
|
input
voltage
to
three
dc
output
voltages.
The
power
supply
provides
|
power
for
the
following:
System
board
Channel
adapters
Internal
diskette
drives
internal
fixed
disk
drives
Auxiliary
device
Keyboard.
|
The
power
switch
and
one
light-emitting
diode
(LED)
is
on
the
front
of
|
the
system
unit.
The
power
supply
is
operating
when
the
LED
is
lit.
|
Outputs
|
The
power
supply
provides
separate
voltage
sources
for
the
system
|
board
and
the
drives.
The
system-board
voltages
are
+5
Vdc,
+12
|
Vde,
and
—12
Vdc.
The
drive
voltages
are
+5
Vdc
and
+12
Vdc.
The
|
following
is
a
list
of
the
approximate
power
provided
for
system
|
components.
|
Maximim
Current
||
System
Component
+12
Vde
+5
Vde
|}
Internal
Fixed
Disk
Drives
2.5A
1.5A
(per
power
supply
connector)
Auxiliary
Device
None
300
mA
|
Keyboard
None
275
mA
Figure
1-7.
Component
Maximum
Current
|
The
following
are
the
load
currents
allowed
for
each
Micro
Channel
|
connector.
|
Supply
Voltage
Maximum
Current
|
+
5.0
Vde
1.64
|
+12.0
Vde
0.175
A
|
—12.0
Vde
0.040
A
|
|
Figure
1-8.
Channel
Load
Current
|
The
formulas
used
to
determine
the
power
requirements
and
the
|
voltage
regulation
tolerances
are
in
the
Micro
Channel
adapter
1-10
Model
60
System
Overview
October
1990
