IBM Personal System/2 60 User Manual

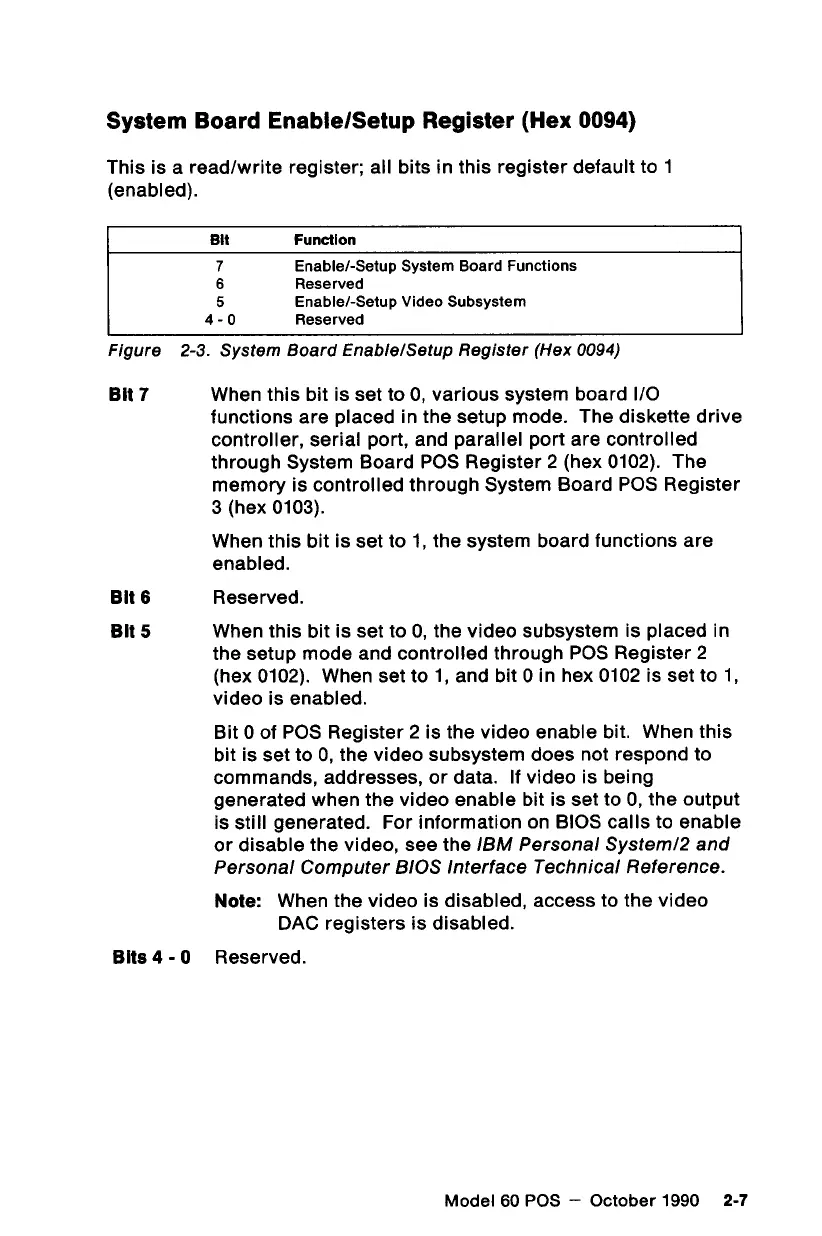

System Board Enabie/Setup Register (Hex 0094)
This is a read/write register; all bits in this register default to 1
(enabled).
Bi Function
7 Enable/-Setup System Board Functions
6 Reserved
5 Enable/-Setup Video Subsystem
4-0 Reserved
Figure 2-3. System Board Enable/Setup Register (Hex 0094)
Bit7 When this bit is set to 0, various system board I/O
functions are placed in the setup mode. The diskette drive
controller, serial port, and parallel port are controlled
through System Board POS Register 2 (hex 0102). The
memory is controlled through System Board POS Register
3 (hex 0103).
When this bit is set to 1, the system board functions are
enabled.
Bit6 Reserved.
Bit 5 When this bit is set to 0, the video subsystem is placed in
the setup mode and controlled through POS Register 2
(nex 0102). When set to 1, and bit 0 in hex 0102 is set to 1,
video is enabled.
Bit 0 of POS Register 2 is the video enable bit. When this
bit is set to 0, the video subsystem does not respond to
commands, addresses, or data. If video is being
generated when the video enable bit is set to 0, the output
is still generated. For information on BIOS calls to enable
or disable the video, see the /BM Personal System/2 and
Personal Computer BIOS Interface Technical Reference.
Note: When the video is disabled, access to the video
DAC registers is disabled.
Bits4-0 Reserved.
Mode! 60 POS — October 1990 2-7
