IBM Power System 5148-21L

Example: Base function disk drive backplane for 8247-42L, 8286-41A, or 8286-42A
On the base function disk drive backplane, the DVD drive and the disks are directly attached to the SAS
adapter, and uses VSES for controlling the LED and power.

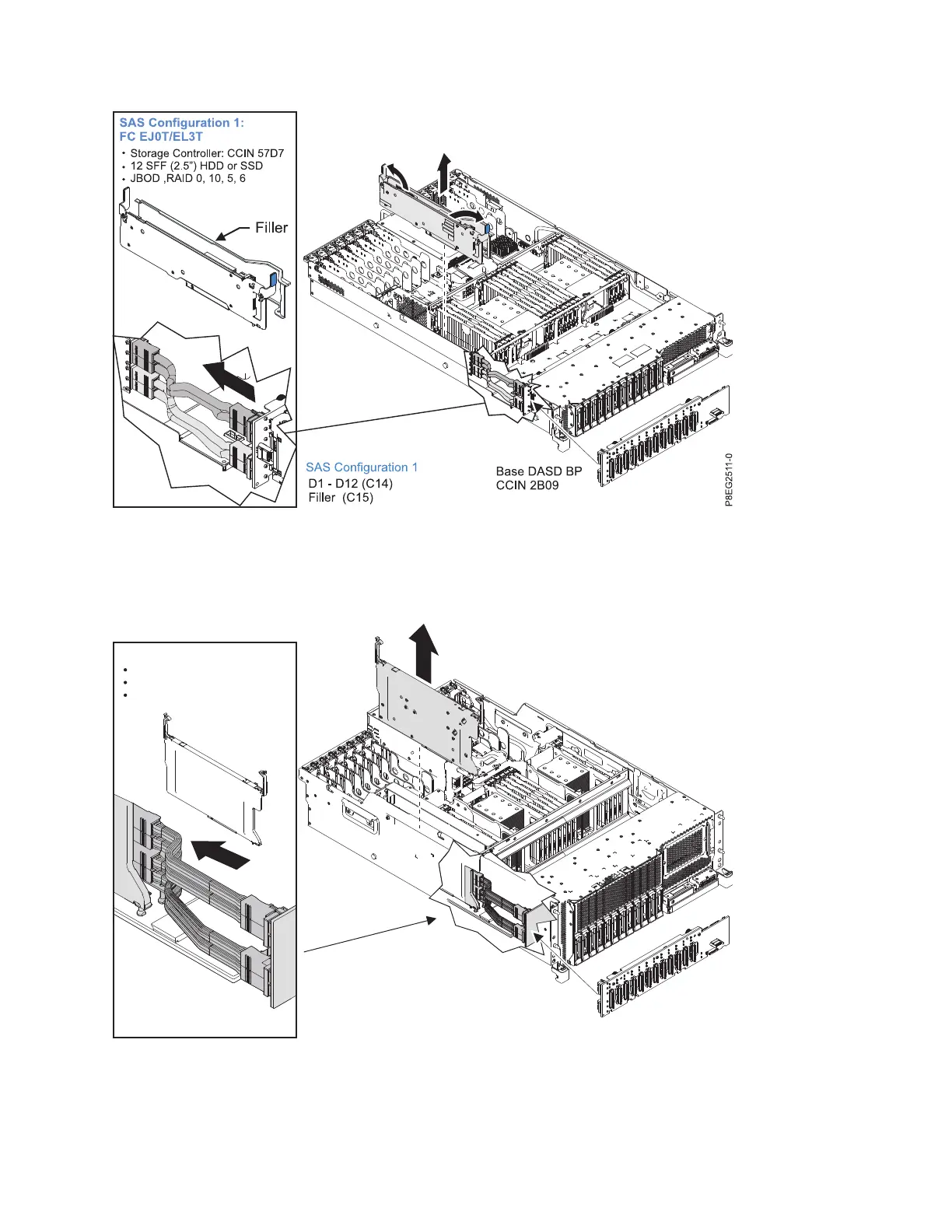

Figure 4. Disk bays controlled by base function disk drive backplane
P8EG2611-2
SASConfiguration1:FCEJ0N
StorageController:CCIN57D7
12SFF(2.5”)HDD/SSD
JBOD,RAID0,10,5,6
D1-D12(C14)
Filler(C15)
SASConfiguration1
BaseDASDBP
CCIN2B09
Figure 5. Disk bays controlled by base function disk drive backplane
SAS subsystem 7
