4. With the SSD drive bay handle (A) in the unlocked position, pull the lever outward to gain access to
the guide rails in the SSD slot. Support the bottom of the SSD as you align it with the guide rails in
the SSD slot. See Figure 8 on page 12.
Note: Support the drive by holding the drive by its sides.
5. Slide the SSD into the system until the drive stops, and then lock the SSD by rotating the bay handle
(A) in the direction shown. See Figure 8 on page 12.
Important: When you install an SSD, ensure that the SSD is fully seated and is all the way into the
system.

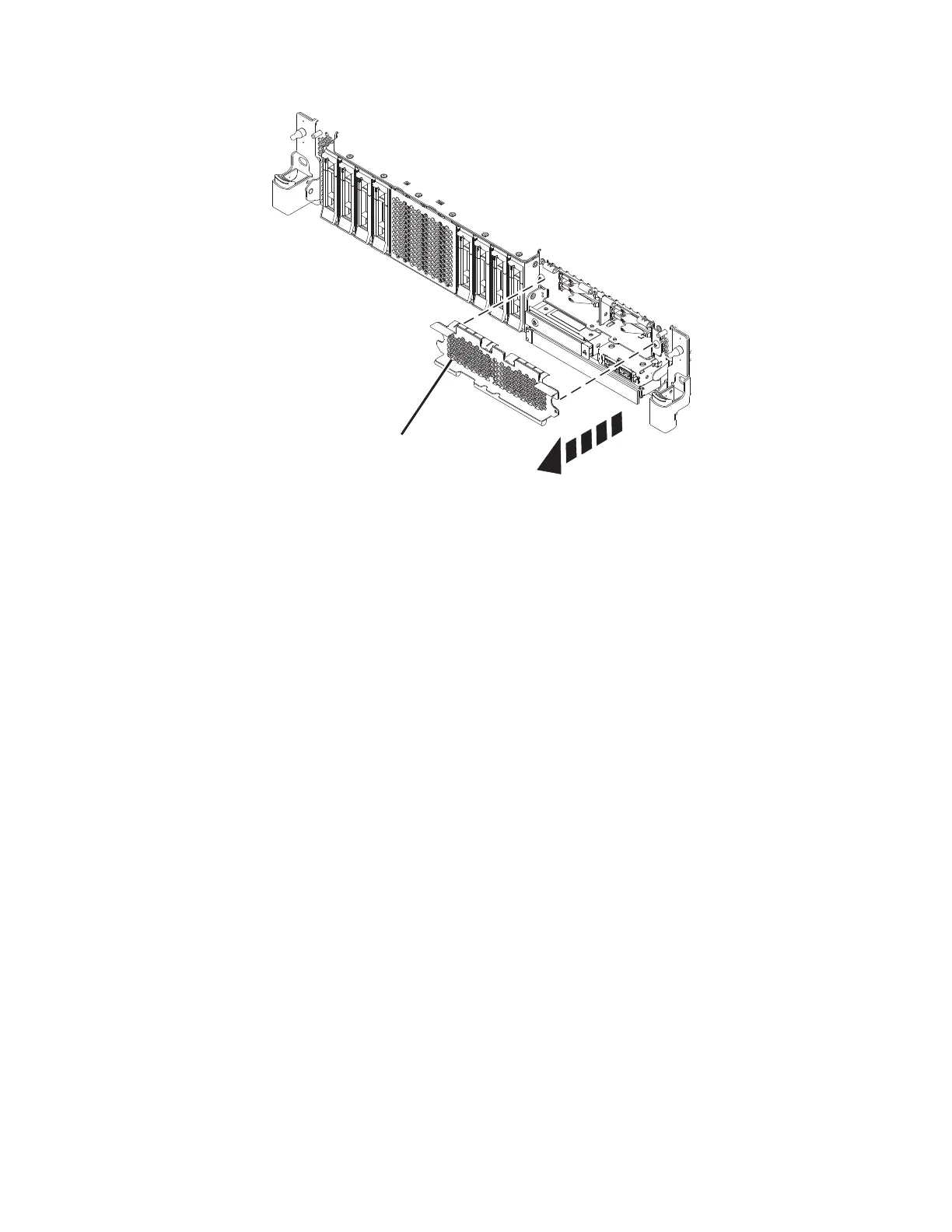

Figure 7. Removing the SSD cage cover to access the SSD slots in an expanded function system
Disk drives or solid-state drives 11
