Examples: Expanded function disk drive backplane
This example shows an expanded function storage configuration in the 5148-22L, 8247-21L, and 8247-22L
systems.
This example shows an expanded function storage configuration in the 8286-41A and 8286-42A systems.

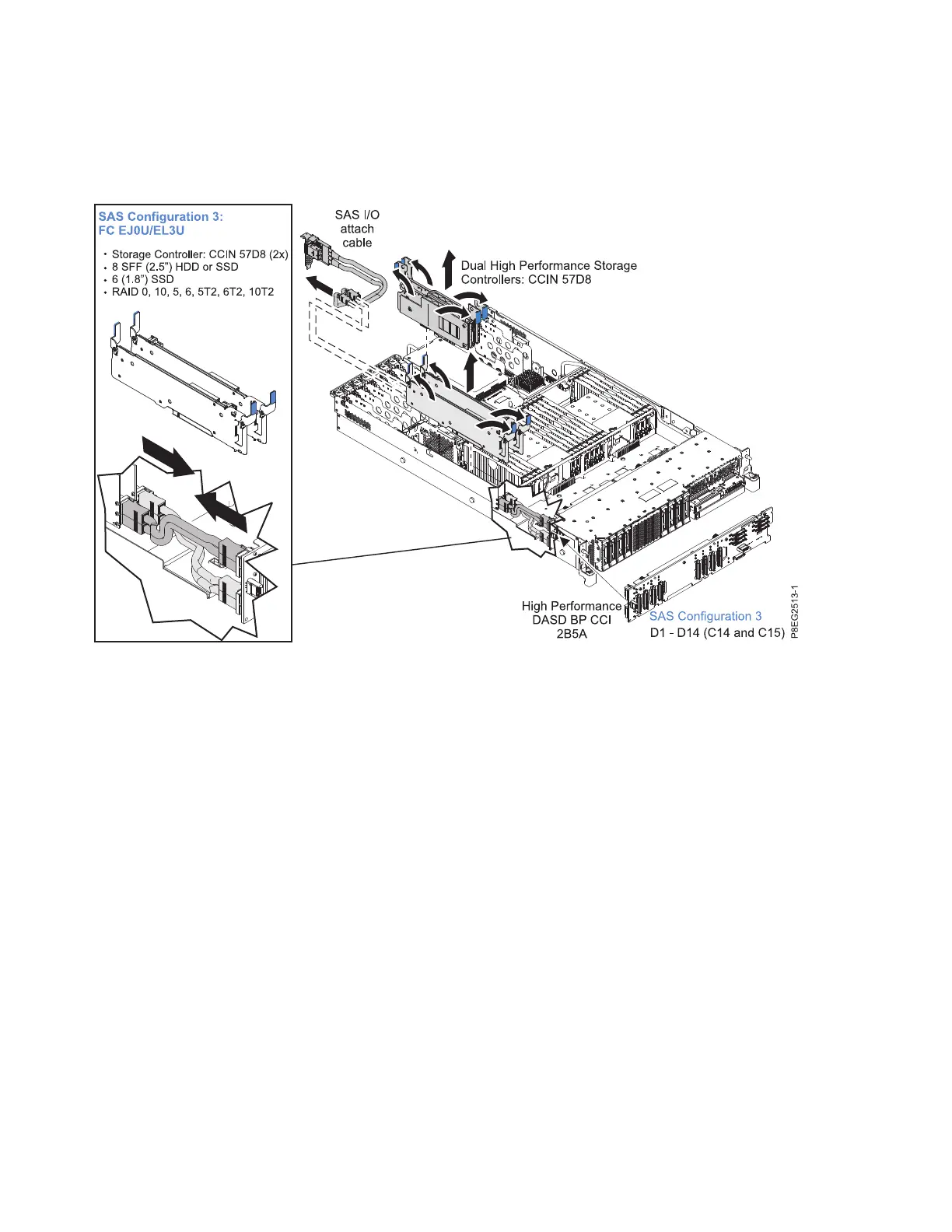

Figure 8. Disk bays controlled by the expanded function disk drive backplane in the 5148-22L, 8247-21L, 8247-22L,
and 8284-22A systems
10 SAS subsystem
