7. On the console, select the drive that you want to install and then press Enter.
8. When the identify LED turns on solid, slide the drive all the way into the system, and push the
drive carrier handle (A) in until it locks, as shown in the following figure. Figure 13 and Figure 14 on
page 18.
Important: Ensure that the drive is fully seated and is all the way into the system.

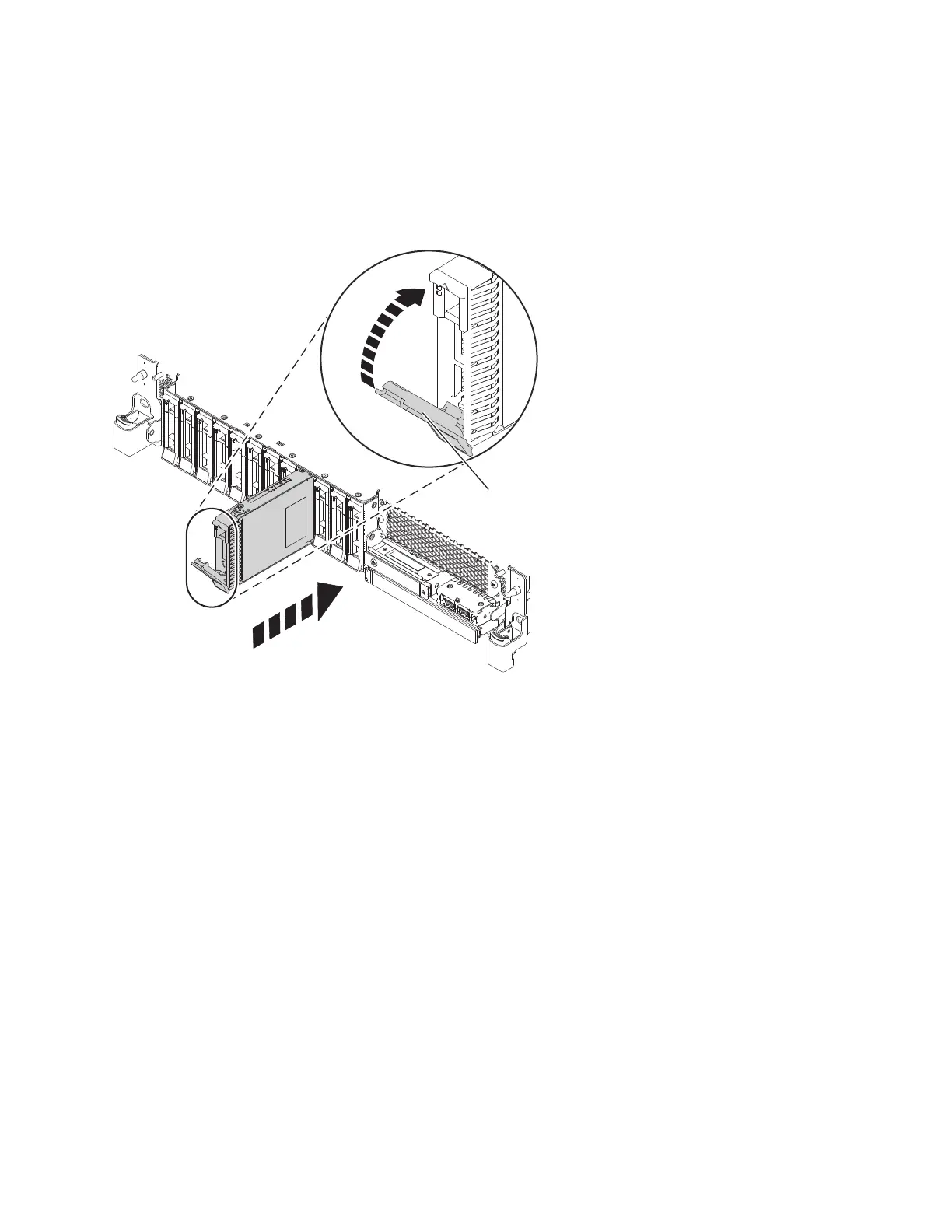

Figure 13. Installing a disk drive in a base function system
Disk drives or solid-state drives 17
