IBM Power System 5148-22L

SAS subsystem base function storage configuration with the split disk
feature for the 8247-21L, 8247-22L, 8284-22A, 8286-41A, or 8286-42A
This configuration uses the base function disk drive backplane with the split-disk feature, with disks split
as 6+6.
The base function storage configuration includes:
v Two PCIe3 x8 SAS RAID internal adapters 6 Gb, with RAID 0,10,5,6
v One base function disk drive backplane that supports 12x SFF (2.5") bays
v One Slimline DVD bay
v Two mini SAS HD cables

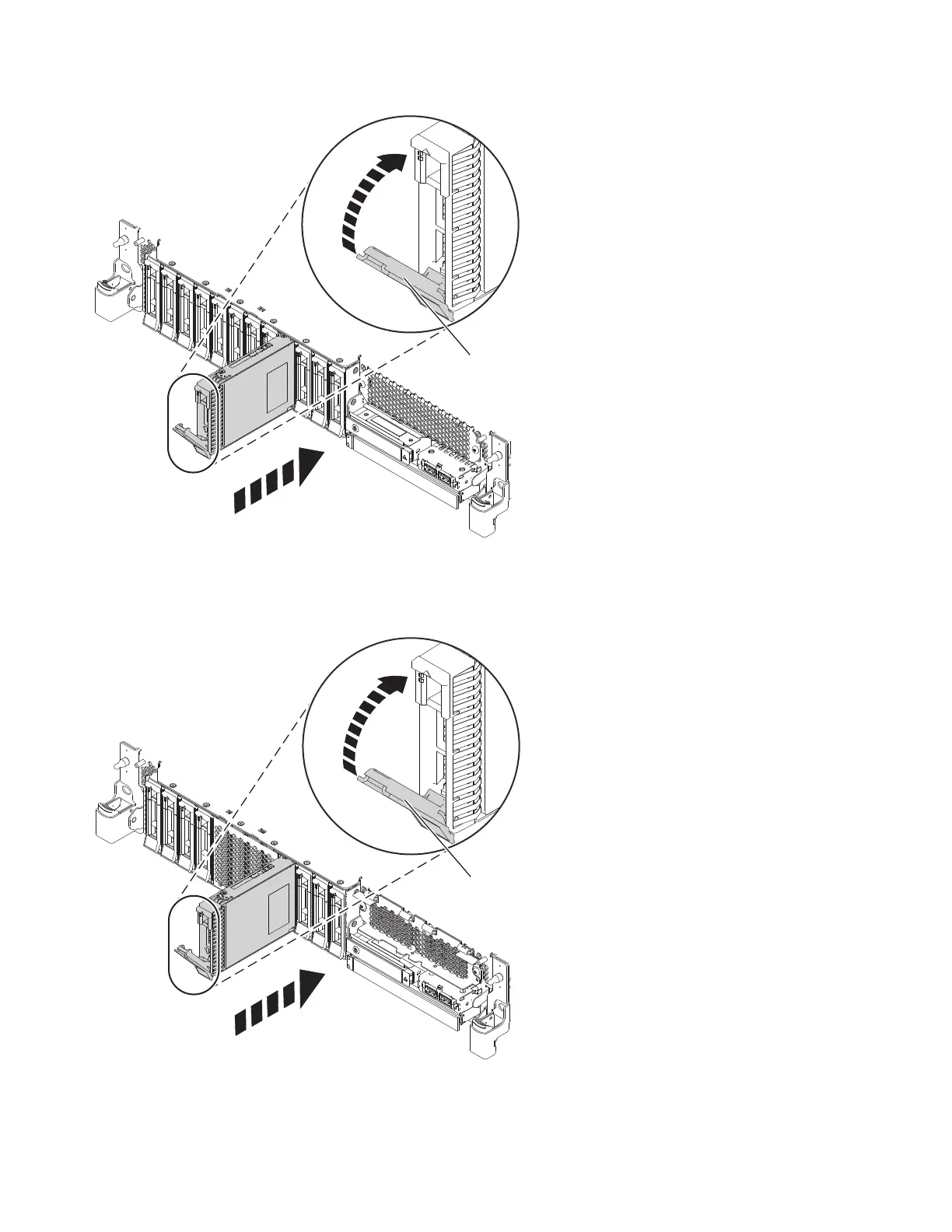

Example: Base function disk drive backplane with split disk configuration for
8247-21L, 8247-22L, 8284-21A, or 8284-22A

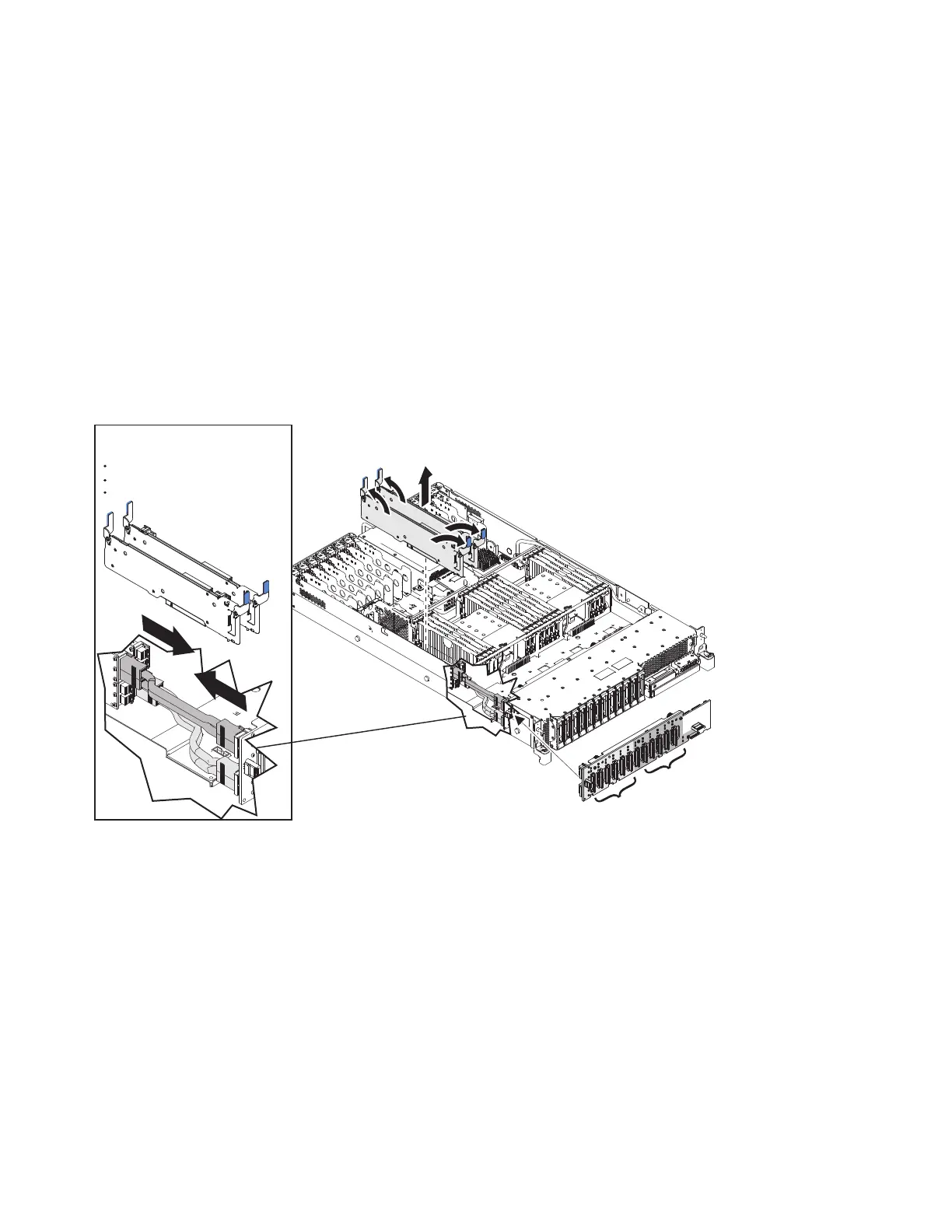

Example: Base function disk drive backplane with split disk configuration for
8247-42L, 8286-41A, or 8286-42A
P8EG2512-2
BaseDASDBP
CCIN2B09
StorageController:CCIN57D7(2x)
12SFF(2.5”)HDDorSSD
SplitDASD6/6,Raid0,10,5,6
SASConfiguration2:
FCEJ0V/EL3V
SASConfiguration2
D1-D6(C15)
D7-D12,D15(C14)
Figure 6. Disk bays controlled by the base function disk drive backplane, with the split disk feature
8 SAS subsystem
