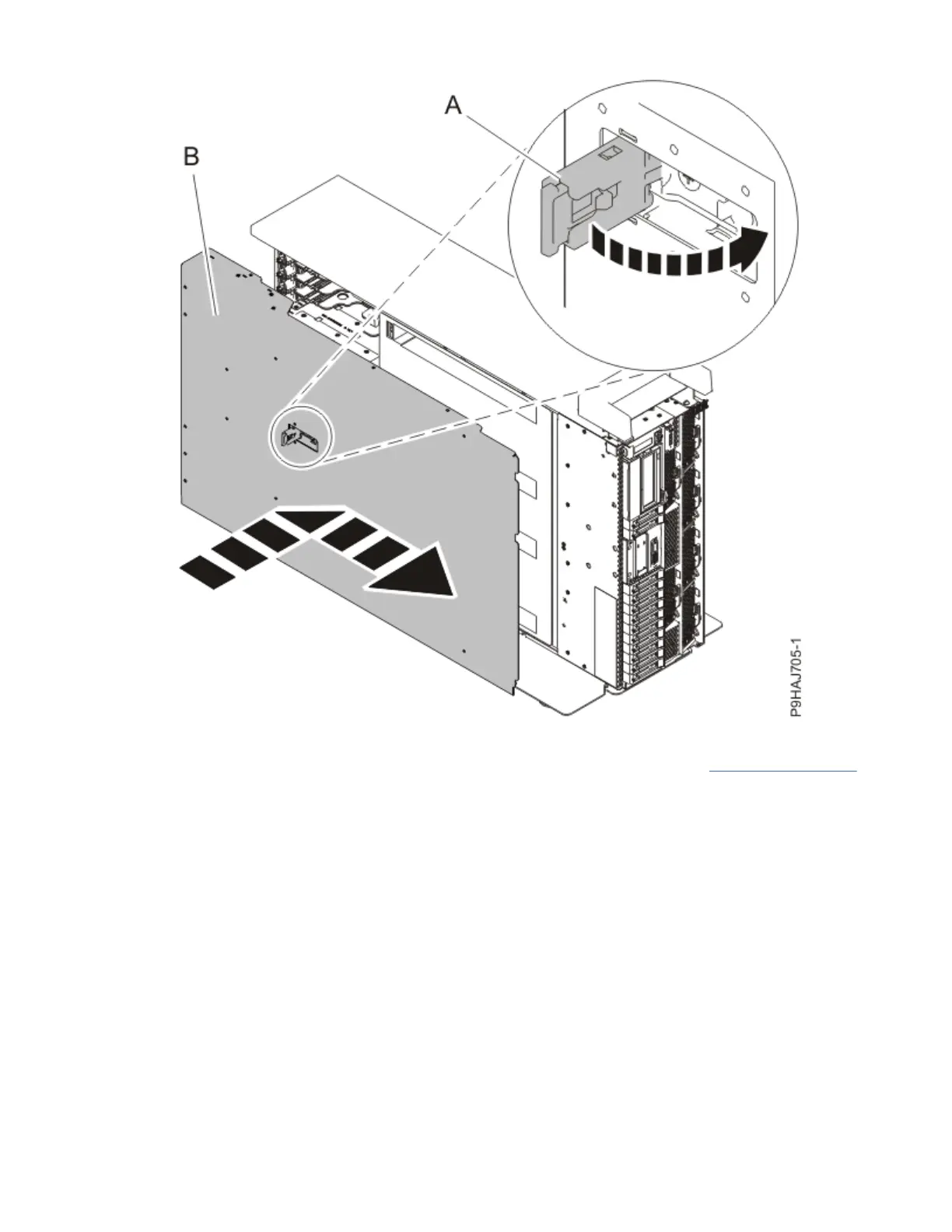

Figure 86. Installing the service access cover
3. For a rack-mounted system, unlock the blue rail safety latches (A) as shown in Figure 87 on page 91
by pushing them inward.
Ensure that the cable management arms can move freely. Ensure that the cables at the rear of the
unit do not catch or bind as you push the unit into the operating position.
90
Power Systems: Power Systems: Control panel
