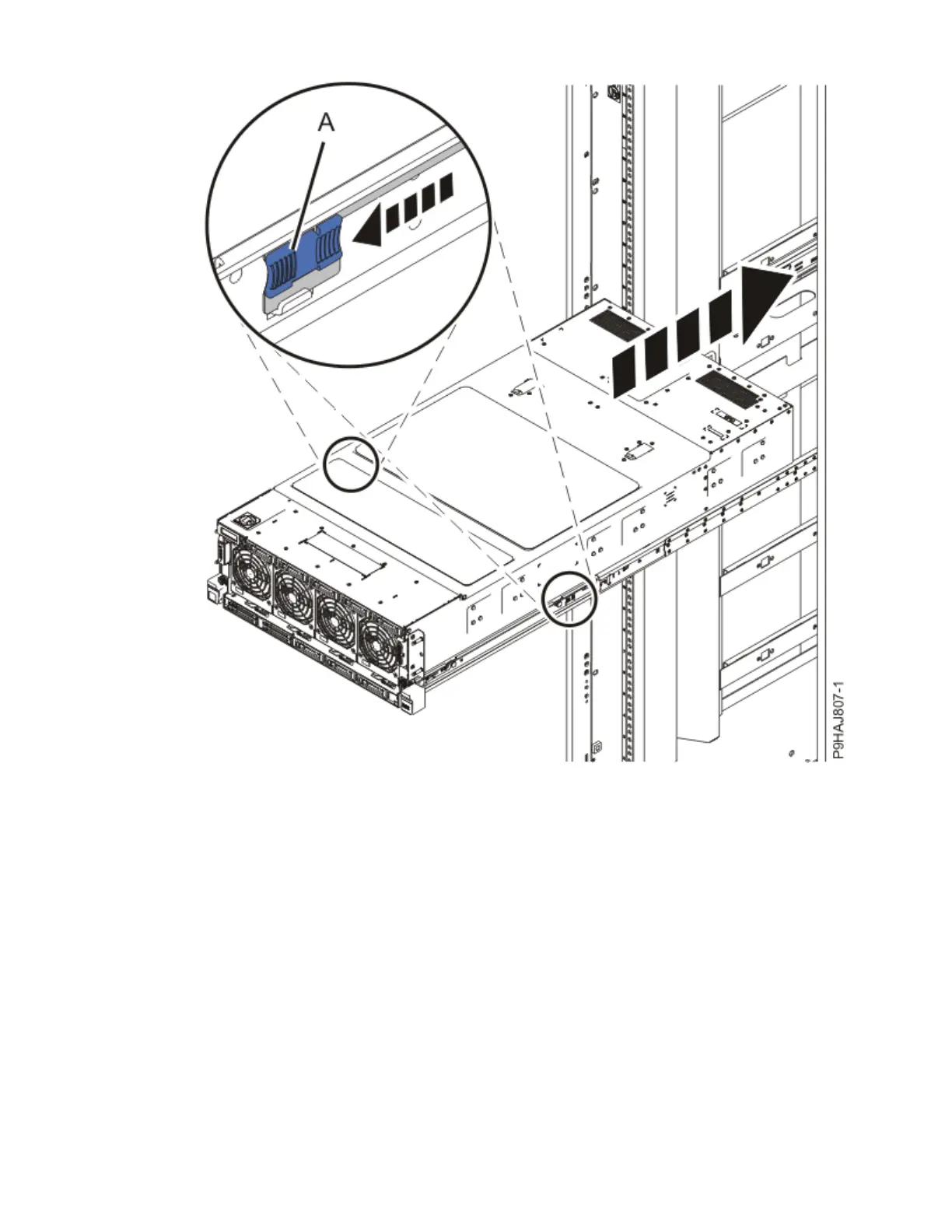

Figure 8. Placing the system into the operating position
5. Using your labels, reconnect all of the external cables that plug into the PCIe adapters.
6. Using your labels, reconnect the power cords (A) to the system unit as shown in the following gure.
Fasten the power cords to the system by using the hook-and-loop fasteners (B) as shown in the
following gure.
12
