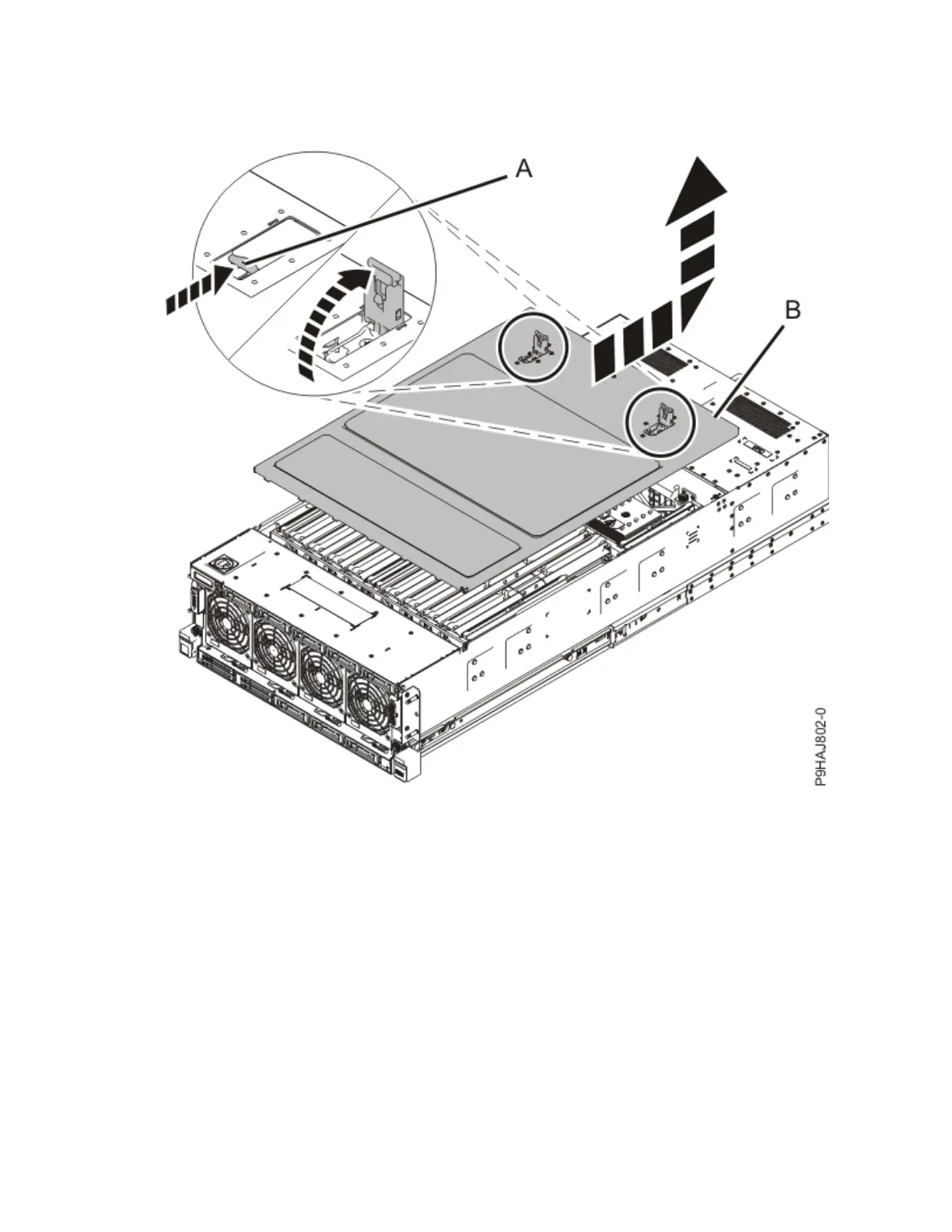

a. Push the release latches (A) in the direction shown in the following gure.
b. Slide the cover (B) off the system unit as shown in the following gure. When the front of the
service access cover has cleared the upper frame ledge, lift the cover up and off the system unit.
Figure 12. Removing the service access cover
8. To activate the identify LED for the faulty part, press and hold push-button (A) on the trusted
platform module card as shown in the following gure.
Verify that the green LED (B) is lit, which indicates that sufcient power exists for the identify LED. If
the LED (B) is not lit, use the location code to nd the physical location by using the service label.
Memory modules for the 9040-MR9
19
