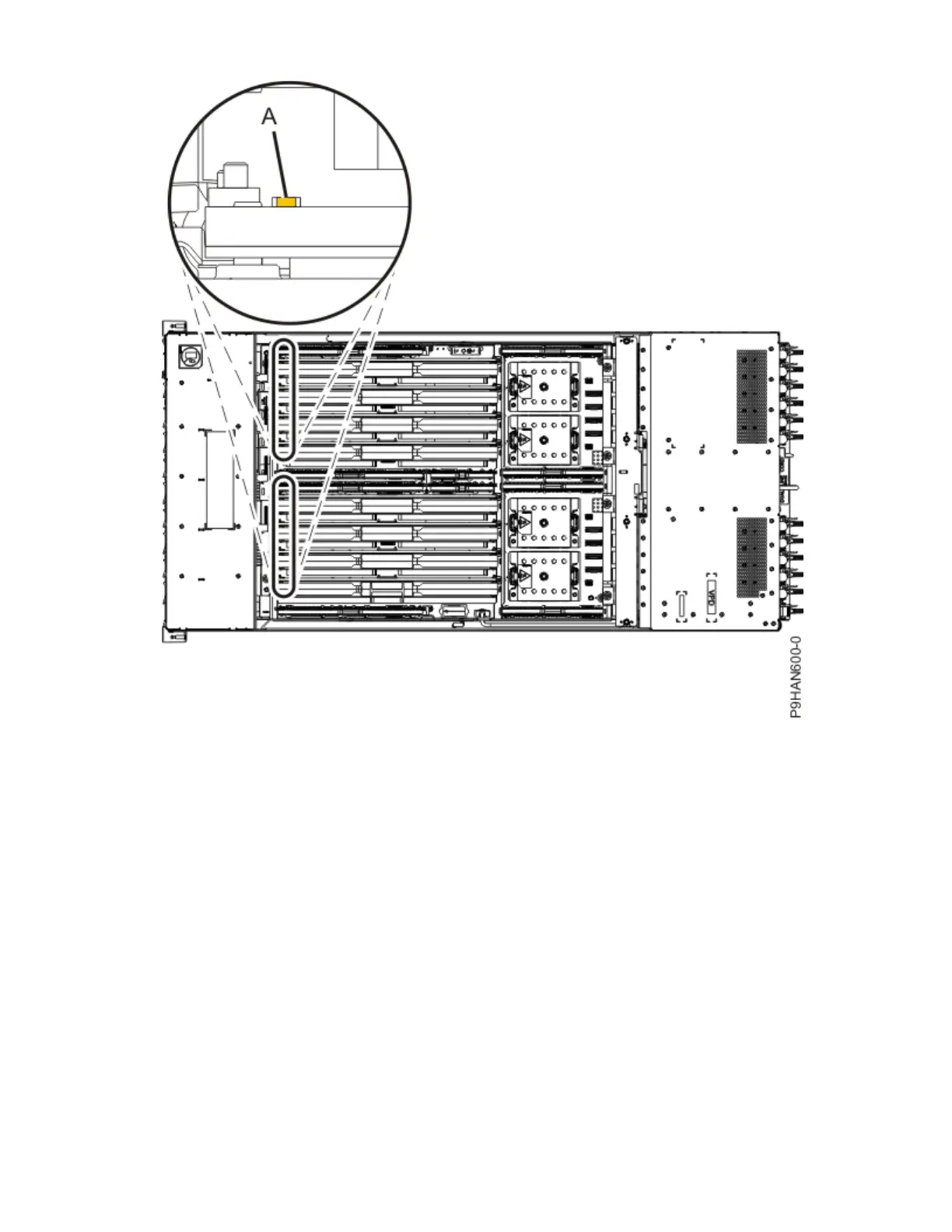

Figure 14. LEDs for a memory riser
If the locator function does not work, you will need to use the event log information to locate the
memory riser to remove.
10. To remove the memory riser that was identied, complete the following steps:
a) Open the release latches (A) on the memory riser as shown in the following gure.
Open the latches to the fully upright 90 degree position.
b) Pull out the memory riser from the slot by holding onto the latches.
Memory modules for the 9040-MR9
21
