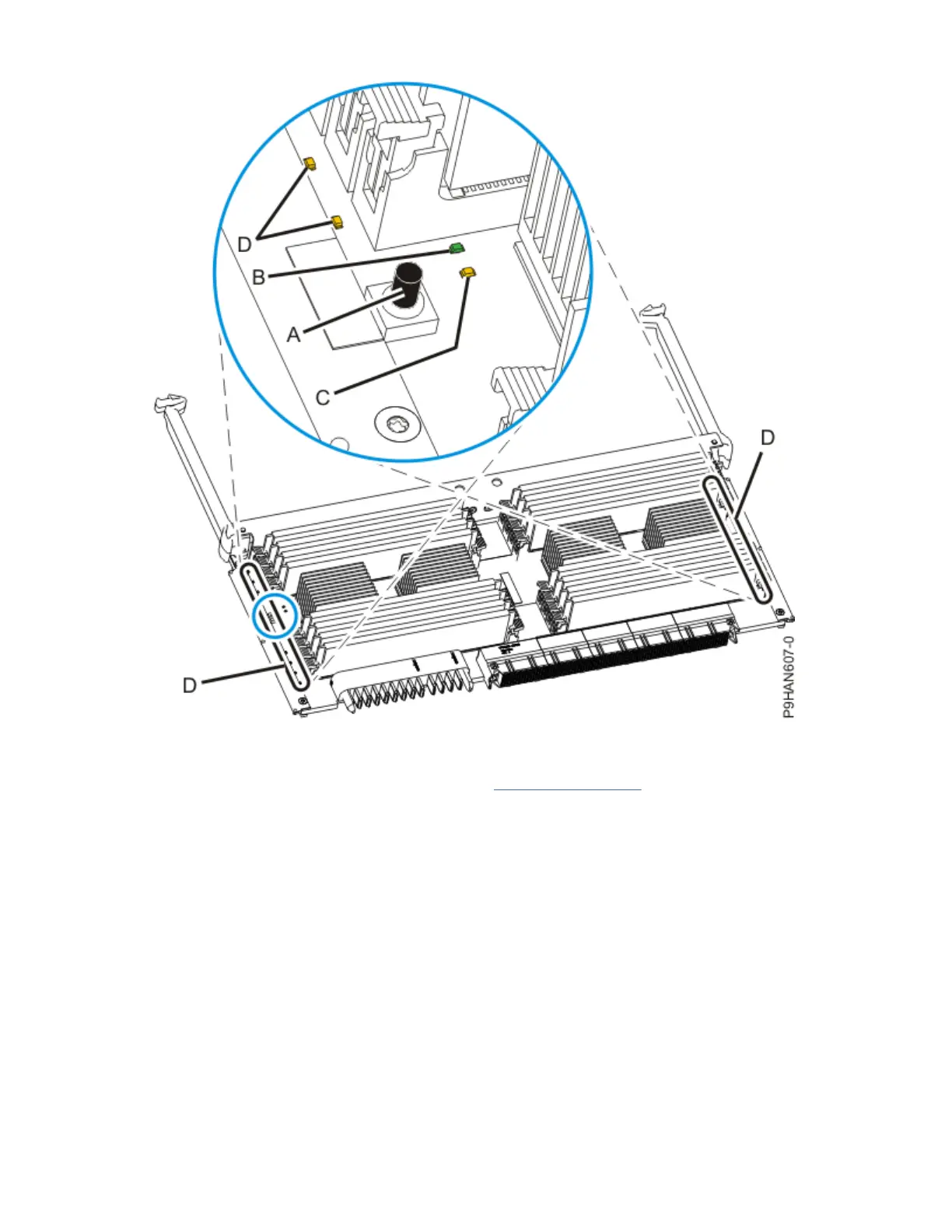

Figure 16. Identifying a memory module
3. To unlock the memory module from its connector, simultaneously push both of the locking tabs away
from the module in the direction that is shown in Figure 17 on page 24.
The lever action of the tabs pushes the memory module out of the connector. If you nd it hard to
open the tabs with your ngers, you may use the tips of ball point pens, or the eraser ends of pencils.
The levers must be opened simultaneously, so that the memory module lifts straight up.
Memory modules for the 9040-MR9
23
