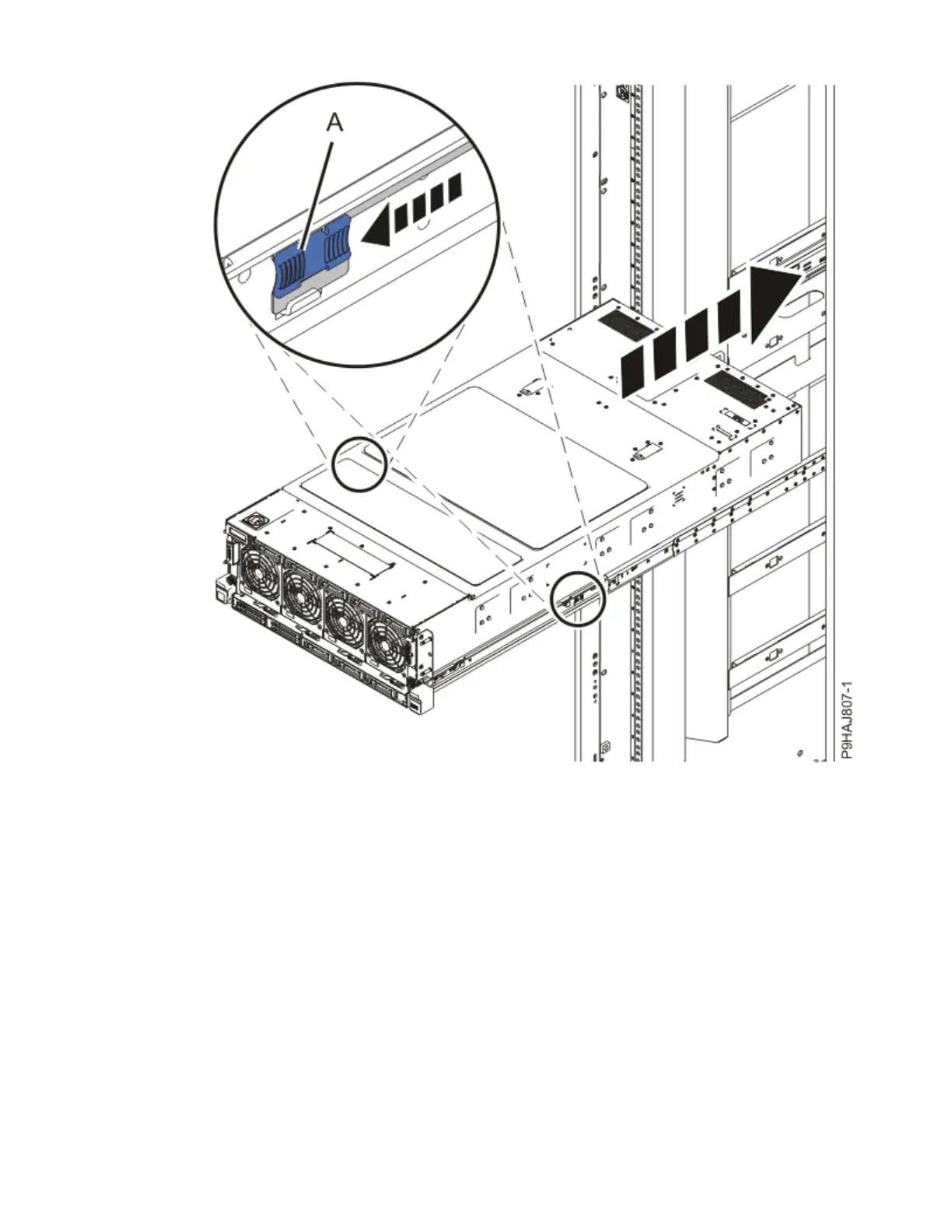

Figure 21. Placing the system into the operating position
5. Push the system unit (B) back into the rack until both release latches of the system unit lock into
position.
Secure the cable management arm with hook-and-loop fasteners around the back side of the cable
management arm, but not around the cables.
6. Using your labels, reconnect all of the external cables that plug into the PCIe adapters.
7. Using your labels, reconnect the power cords (A) to the system unit as shown in the following gure.
Fasten the power cords to the system by using the hook-and-loop fasteners (B) as shown in the
following gure.
28
Power Systems: Power Systems: Memory
