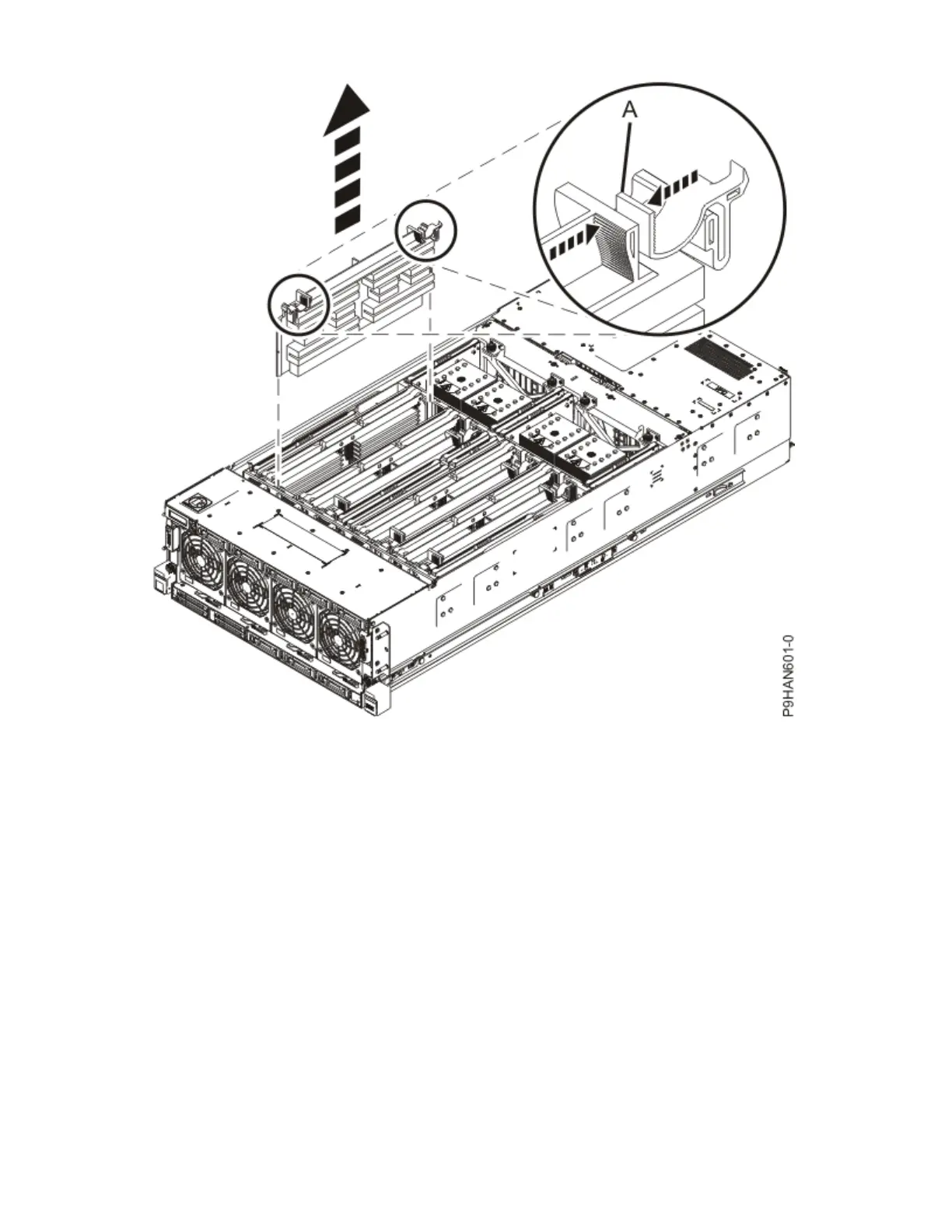

Figure 35. Removing a memory riser ller
4. To insert the memory riser, complete the following steps:
a) Ensure the release latches (A) are fully open to a 90 degree angle as shown in the following gure.
b) Align the memory riser with the connector.
c) Press the memory riser rmly into the connector.
d) Rotate the release latches into the closed position, and press the release latches down to ensure
that the memory riser is fully seated into the connector.
50
Power Systems: Power Systems: Memory
