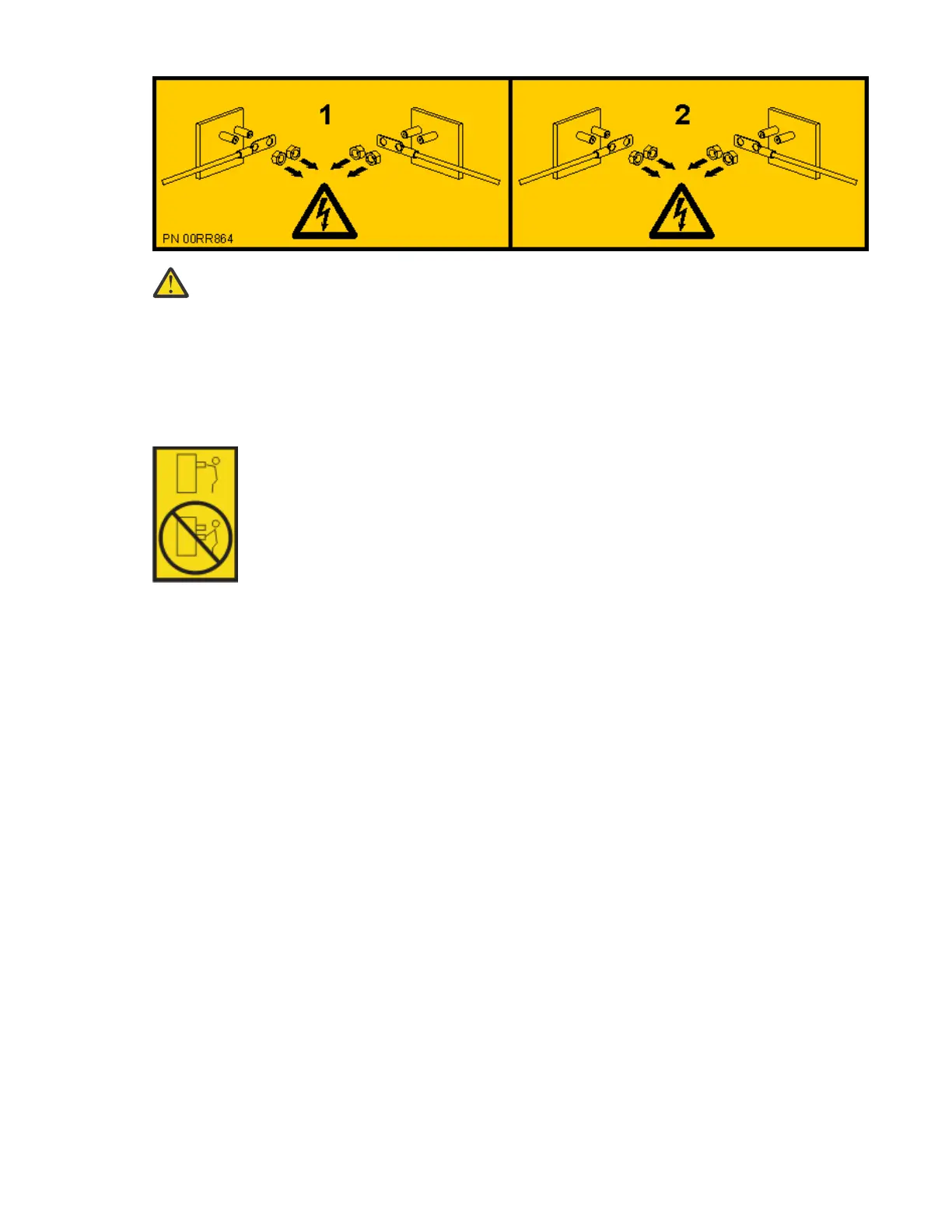

DANGER: Multiple power cords. The product might be equipped with multiple AC power cords
or multiple DC power cables. To remove all hazardous voltages, disconnect all power cords and
power cables. (L003)
4. Label and disconnect all external cables that are attached to the PCIe adapters.
5. Complete the following steps to place the system in the service position.
Do not pull out or install any drawer or feature if the rack stabilizer brackets are not attached to the
rack. Do not pull out more than one drawer at a time. The rack might become unstable if you pull out
more than one drawer at a time.
a. If not already removed, remove the shipping screws (A) as shown in the following gure by using a
Phillips screwdriver.
b. Release the side latches (B) by pressing them downward as shown in the following gure.
c. Pull out the system (C) as shown in the following gure. Ensure that any cables do not catch or bind
as you pull out the system.
Memory riser for the 9040-MR9
73
