Notes:
• No cascading allowed for the 5887 storage drawer.
• The 5887 storage drawer is connected to same numbered port on each adapter.
• HD AA cable is required.

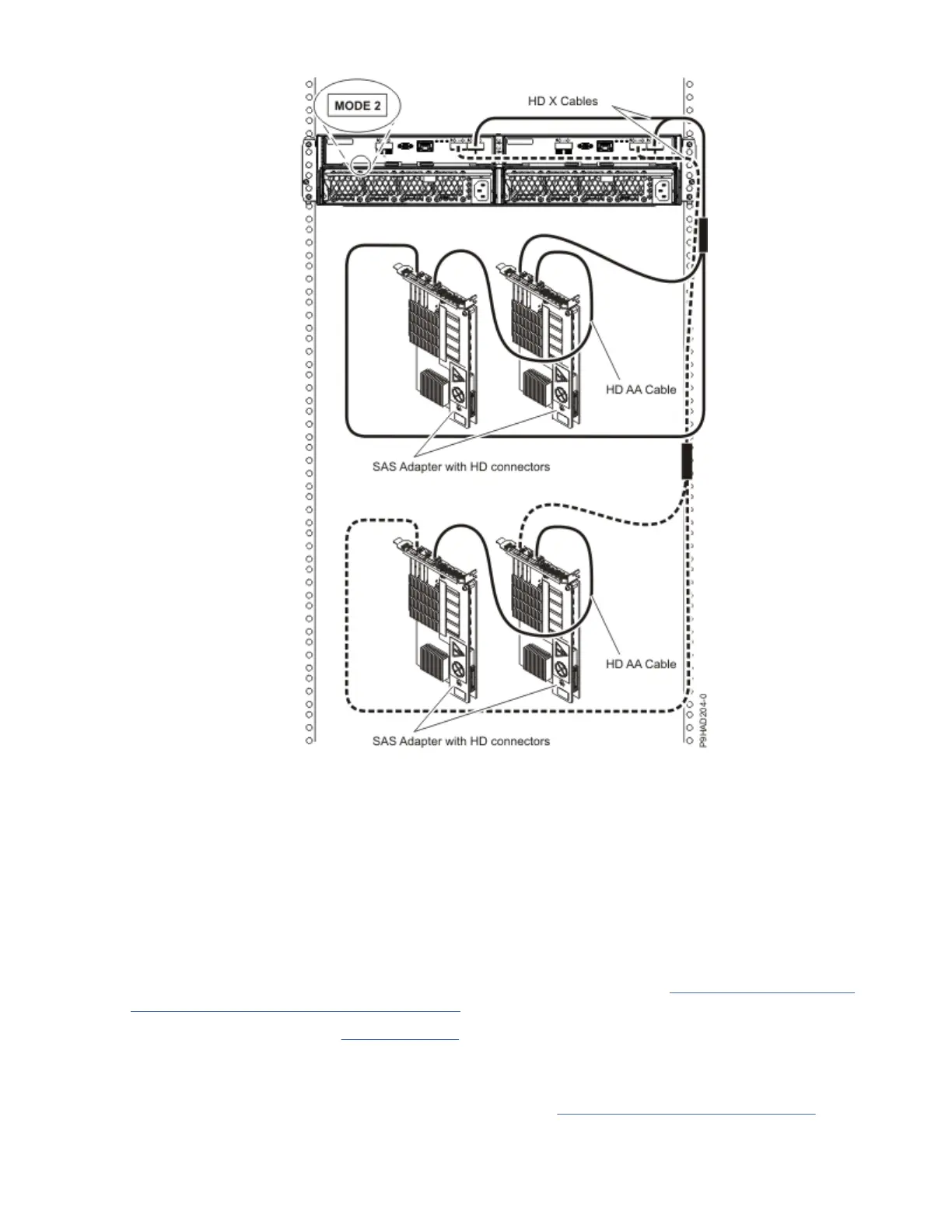

Figure 46. Two pairs of RAID SAS adapters with HD connectors to a disk expansion drawer – Mode 2 in a
multi-initiator HA mode
Internal disk drive sharing
The following information is for use after the FC 5901 SAS Storage adapter is installed. Install the adapter
and then return here. For more information about the PCI adapters topic, see Installing PCIe adapters in
the 9008-22L, 9009-22A, or 9223-22H system.
Please review the tasks in the Before you begin section before you proceed with the following procedure.
This feature allows you to split the internal disks in the system unit enclosure into groups that you can
manage separately.
1. Stop and power off the system. For more information, see Stopping a system or logical partition.
2. Cable a single system unit enclosure by completing the following steps:
122
