IBM Power System L922 Site And Hardware Planning

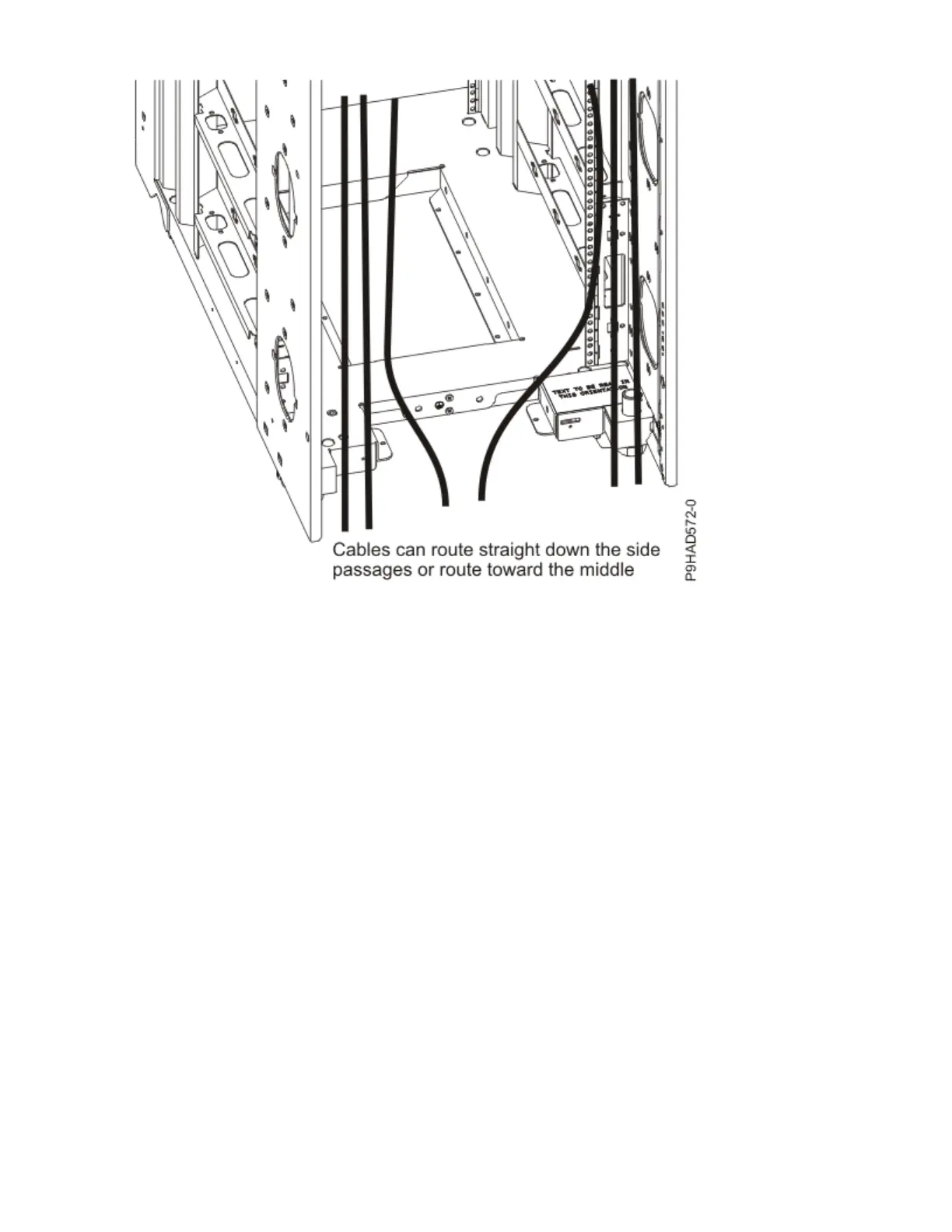

Figure 18. Cabling under the floor
Cabling overhead
Front and rear cable access openings that are on the top of the rack cabinet allow cables to be routed up
and out of the rack. Cable access covers on the rear are adjustable by loosening the side screws and
sliding the covers forward or backward. Because of the smaller size of the cable openings in front, cables
that pass through this area must be minimized.
Site and hardware planning
57
