Figure 3. Closing the cable management arm

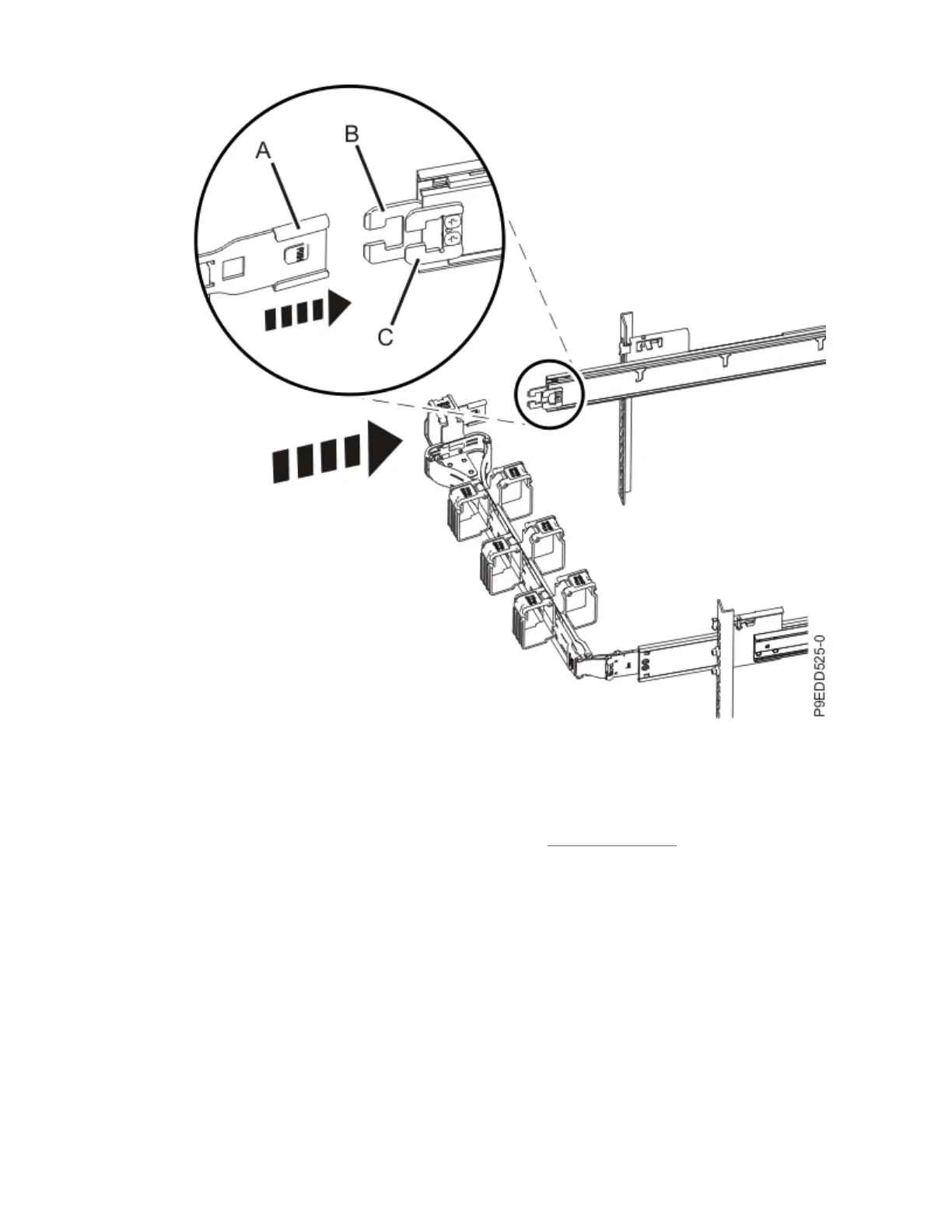

12. Disconnect the cable management arm from the system by pressing the inner cable management
arm tab (A) while lightly squeezing the inner and outer cable management arms together. Then,
secure the inner cable management arm to the outer cable management arm with a hook and loop
fastener. You should secure the inner and outer arms at the narrowest spot (G) between the basket
and the side of the arm that you just disconnected. See Figure 4 on page 7.
6
Power Systems: System backplane
