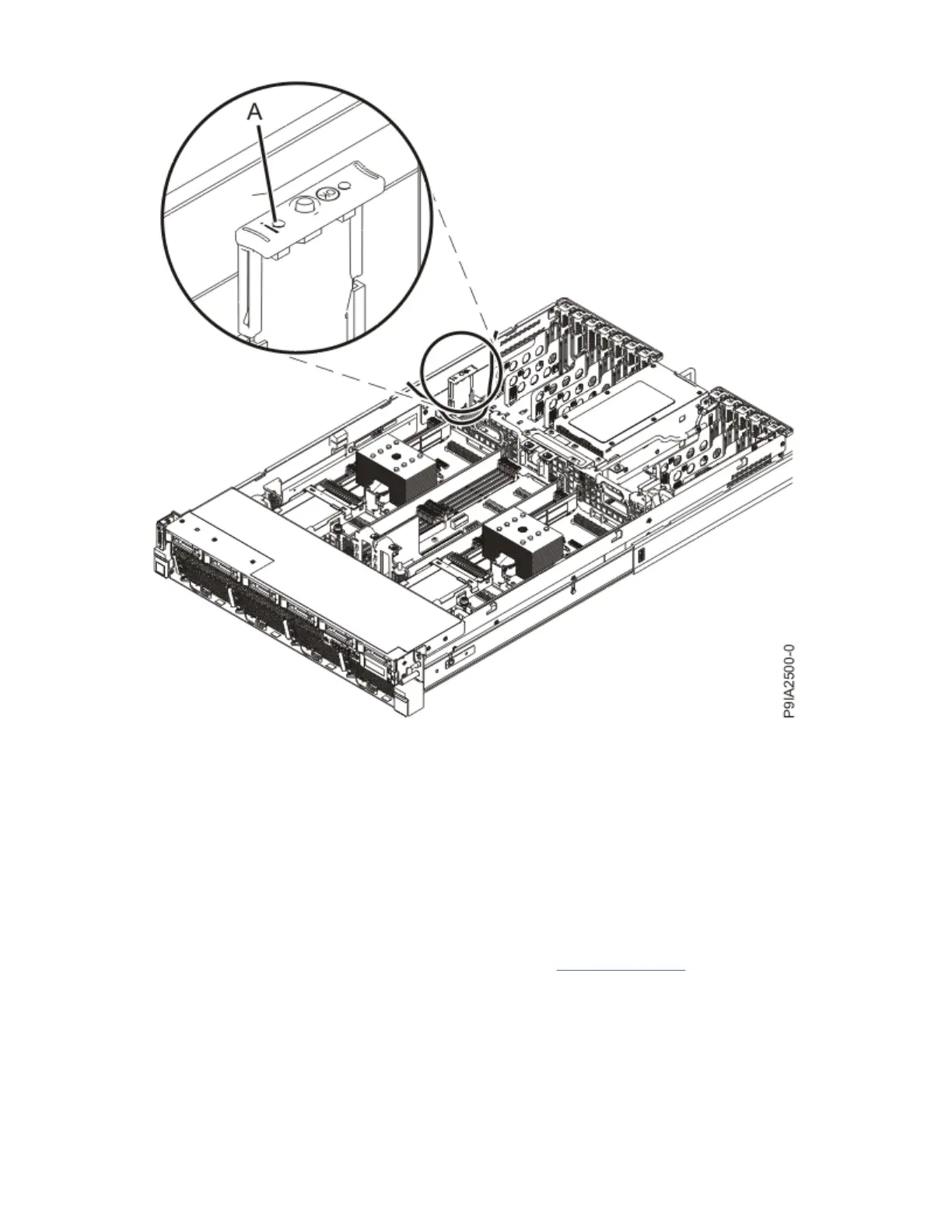

Figure 5. Service indicator LEDs
Removing the trusted platform module card from the 5105-22E, 9008-22L, 9009-22A,
9009-22G, 9223-22H, or 9223-22S system
To remove the trusted platform module (TPM) card, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Remove the TPM card.
a) Grasp the TPM card by the plastic housing as shown in Figure 6 on page 9
.
b) Pull the TPM card out of its slot in location P1-C14 on the system backplane.
8
Power Systems: Trusted platform module
