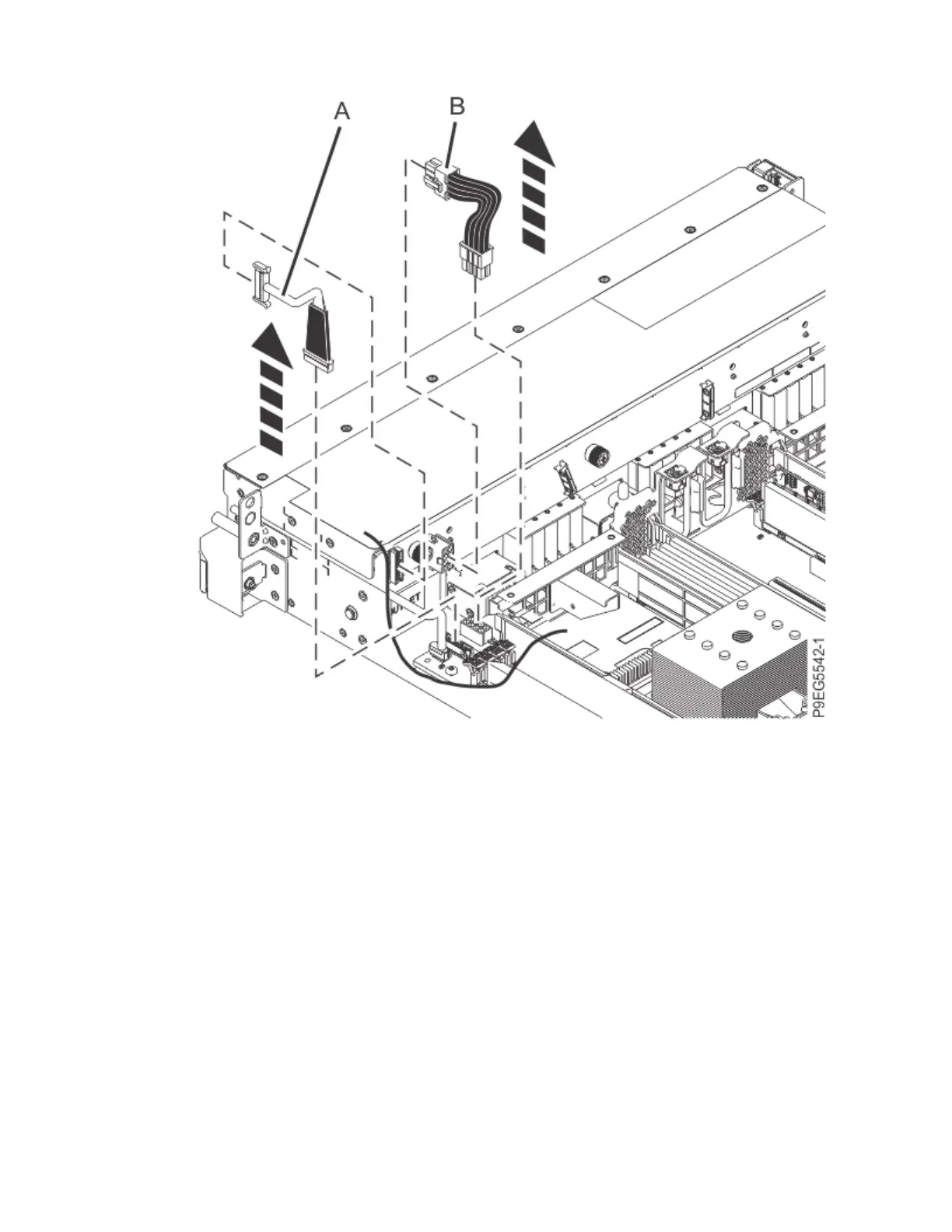

Figure 45. Disconnecting the signal cable and power cable

b) Ensure that all cables are carefully positioned out of the way, such that the NVMe drive backplane

can be easily lifted and removed.

c) Unscrew the three captive thumbscrews (A) of the NVMe drive backplane (B) as shown in the

following gure until fully loose.

If needed, use a Phillips screwdriver to loosen the screws.

Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,

or 9223-22S 47
