Table 3. SAS dual-RAID subsystem components (feature code EJ01)
Diagram
location Part name CCINs Physical location codes
A Base backplane
1
2B2C, 2B2D, 2B4A,
or 2B4B
Un-P1
B Tape drive (optional)
1
NA Un-P1-D1 (SAS connector) or Un-P1-D2 (USB
connector)
Note: The tape drive bay is the same for both.
C DVD drive
1
NA Un-P2-D9
D 8-disk-drive dual storage
IOA backplane with
removable media
2BD6 Un-P2
E, F 8 SFF disk drives NA Un-P2-D1 - Un-P2-D8
G RAID/Cache storage
controller
2B4C Un-P1-C19
H Cache battery card 2BCF Un-P1-C14
I SAS I/O attachment cable Un-P2-T1
(not
pictured)
Optional external SAS cables
for storage on integrated
RAID
1
v 1.5 m: FC 3686
v 3.0 m: FC 3687
1
Feature is part of the SAS subsystem but separate from feature code EJ01.
Feature details
SAS RAID adapters
The SAS RAID adapters have the following features:
v A host PCI-x at 66 MHz.

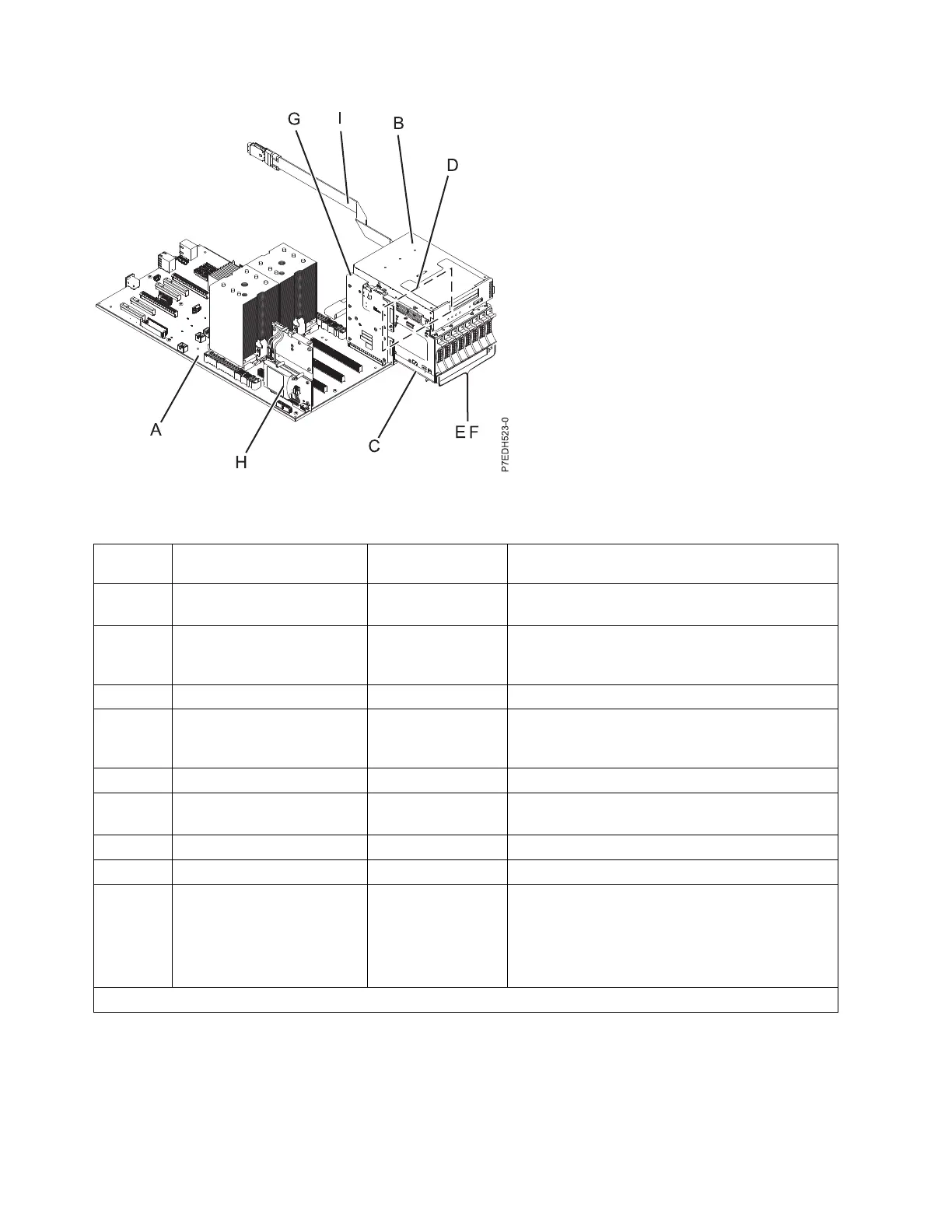

Figure 3. SAS dual-RAID subsystem overview
4 SAS subsystem
