a. Loosen the two thumbscrews (A) on the small front brackets below the ESM units. Remove the
brackets by lifting them up and away from the ESM units.

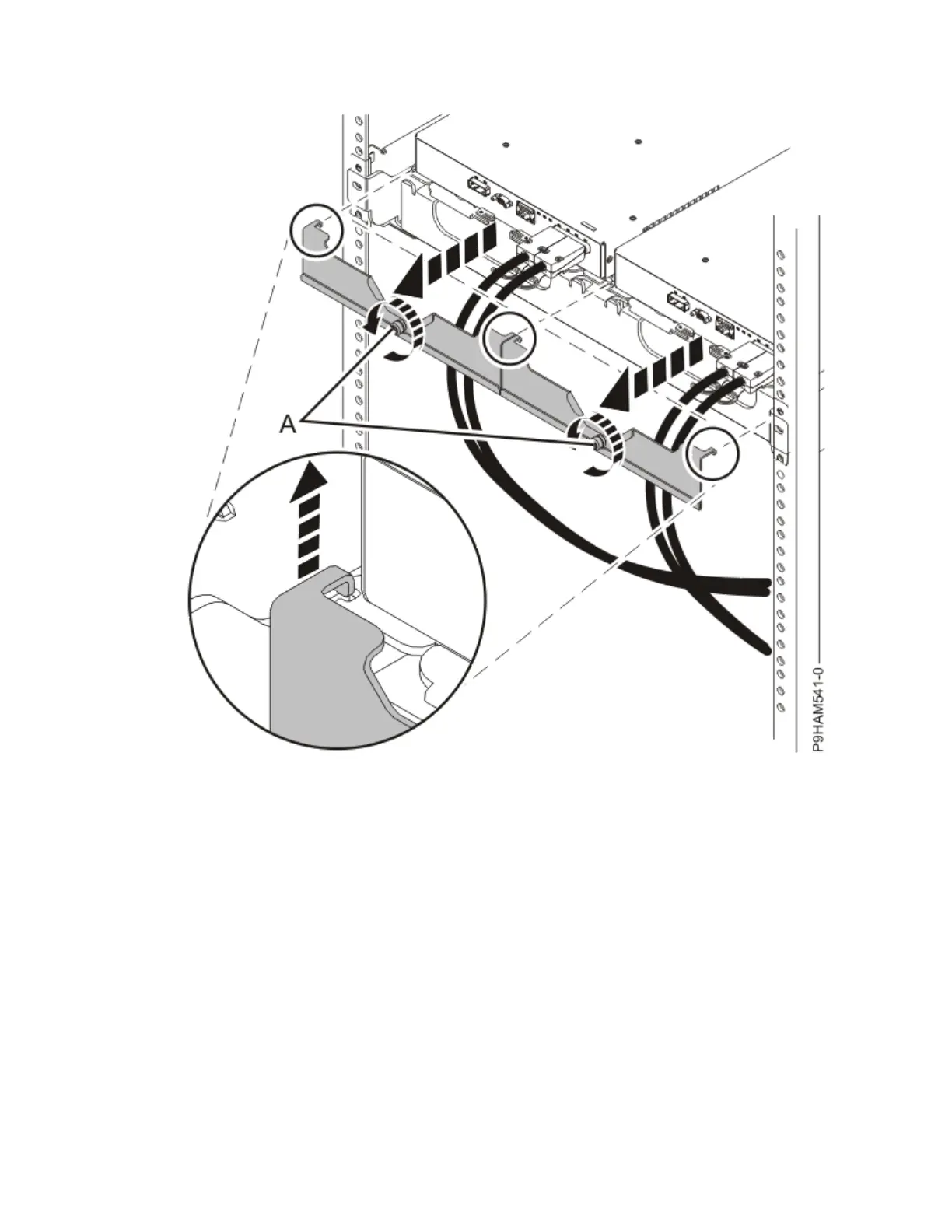

Figure 2. Removing the small front brackets
b. Using a screwdriver, remove the screw that attaches the large bracket to the left flange of the rack
frame. Then, remove the screw that attaches the bracket to right flange.
Note: Keep the screws that you remove for later in the procedure.
Installing the 5887 disk drive enclosure or setting up a preinstalled 5887 disk drive enclosure
3
